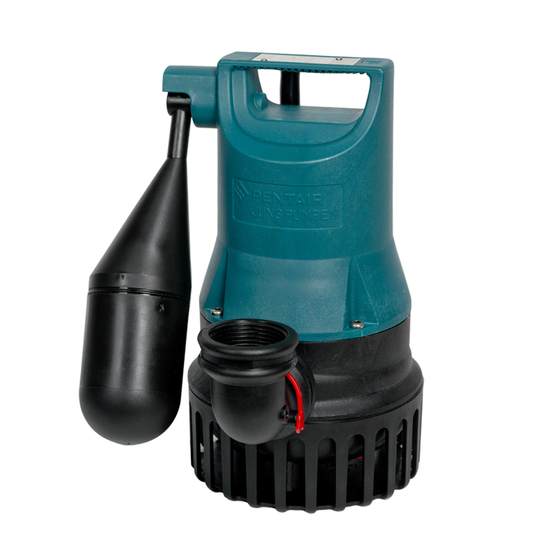

Jung U3K Spezial Waste Water Pump

The U3K Spezial is made from high quality resistant materials and is suitable for both stationary and portable use. If provides reliable pumping of silage liquor, liquid fertilizer, lightly acidic condensate, abrasive liquids and liquids containing salt.

Technical Datasheet
Category:

Description

Contaminated water at high temperatures from dishwashers and washing machines (also high temperature) as well as condensate from condensing boilers can also be removed with the pump. For stationary operation the pump can also be combined with either the collecting tank supplied or with chemical-resistant collecting tanks.

The U 3 K (S) is also the ideal pump, for example, to use in your water softening system. It can be supplied with or without automatic level control and is available with or without float switch.

Key Information

  • Clearly defined switching points thanks to the optimised level control guide mechanism
  • Rinsing openings to facilitate the cleaning of the tank
  • Moisture Sealed Cable inlet
  • For water solutions up to 10% salt content
  • The silicon carbide mechanical seal ensures optimum protection of motor and shaft
  • Continuous operation when not submerged due to the use of a cooling jacket

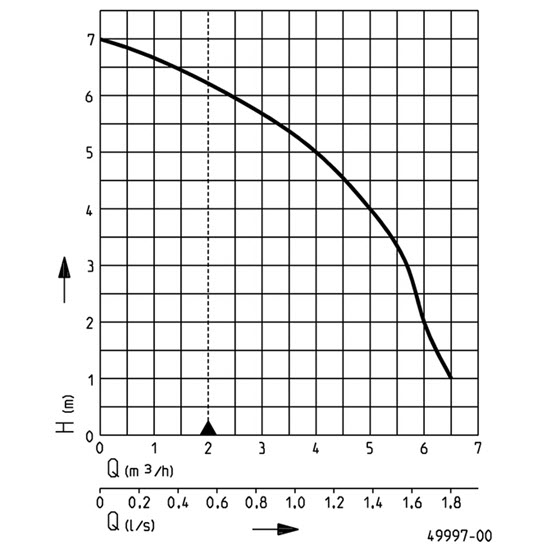

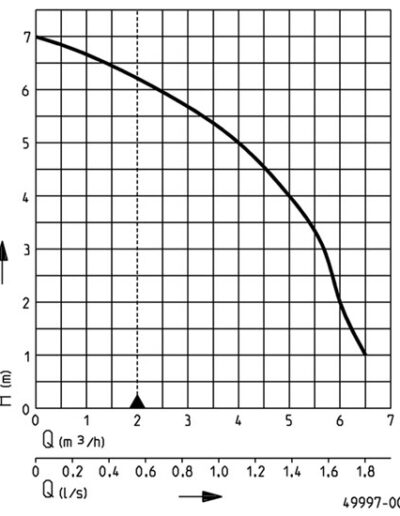

Technical Information

  • 10mm Free solids handling
  • 1.25 inch Discharge
  • 7m Hmax
  • 6.5m3/h Qmax



Models

Type Code No. Ciruit Power line
U3K spezial, 10 m cable
JP50007
Without level control
10m H07RN-F
U3KS spezial, 4 m cable
JP50005
With built-in level control
4m H07RN-F
U3KS spezial, 10 m cable
JP50006
With built-in level control
10m H07RN-F

3D Image

Please allow a short time for the 3D image to load. You can then click on the image to rotate it.

Spares

We stock many Jung Pumpen spares at our warehouse in Aldermaston. Please call the office on 0118 9821 555 if you need help, or to place an order.

Type Code No.
Shift shaft JP42770
Microswitch JP50531
Capacitor JP50535
Top Cover JP50545 U3 K spezial, 10m
Top Cover JP50543 U3 KS spezial, 4m
Top Cover JP50544 U3 KS spezial, 10m
Float JP42771
Motor JP50553
Impeller JP50551
Flushing plugs JP50561
Elbow JP46355
Volute casing JP50555
Seal set JP50559
Screw set JP50557
Strainer base JP46360

Please download the U3K spares list
