US Performance

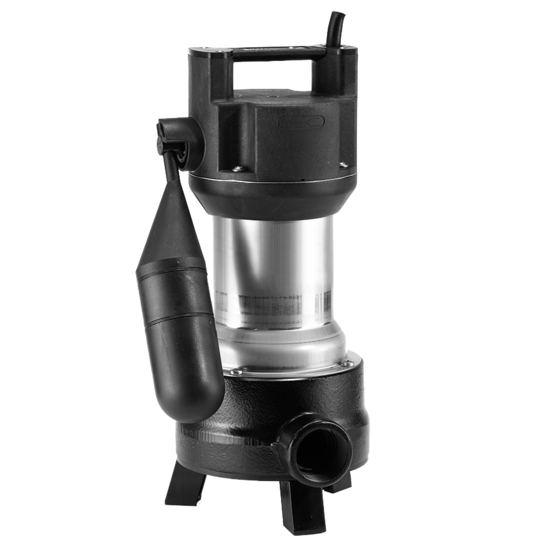

Jung US 73-253 Waste Water Pump

The Jung US73-253 Pump is a centrifugal submersible drainage pump.

Suitable for dealing with contaminated water and capable of handling solids up to 30 and 40mm particle size (no stones), it can be used in stationary or portable applications. Fibrous waste water, as found in laundries or automatic launderettes and waste water from domestic dishwashers and washing machines can be handled by this pump range.

Technical Datasheet US73 – 253 Technical Datasheet US73 HE/103 HE Technical Datasheet US73 EX/103 EX
SKU: jp09264 Category:

Description

The Jung US 73-253 is particularly suitable for dishwashers / washing machines and kitchen sinks. For hot water we have the US73 HE /HES and US 103 HE/HES. It is available with or without float switch.

For easy removal of the pumps from deep sumps we recommend the use of the guide rail systems which provide ease of maintenance and inspection. For automatic monitoring of the oil chamber a seal leak control can be connected.

These submersible drainage pumps show what they are made of in applications calling for faecal-free wastewater to be pumped from different areas. Powerful motors, hydraulics that are tailor-made for the media pumped, and also high-quality materials are the hallmarks of the US range of pumps

Key Information

  • Safe to run dry
  • Easy to maintain due to guide rail systems
  • 30 mm free passage (US 73, 103+153)
  • 40 mm free passage (US 253)
  • Controllable oil chamber
  • SiC mechanical seal independent of rotation direction
  • Replaceable moisture sealed cable inlet

Technical Information

  • 30/40mm free passage
  • discharge branch 1½” resp. 2″
  • Hmax = 16 m
  • Qmax = 40 m3/h

Models

Type Code No. Ciruit Voltage Motor rating P1 Motor rating P2 Current Motor protection Plug Free passagee
US 73 E
JP00676
Without level control
1/N/PE~230 V
0.83 kW
0.5 kW
3.9 A
Integrated
Safety
30 mm
US 73 D
JP00677
Without level control
3/PE~400 V
0.85 kW
0.6 kW
1.4 A
Integrated
CEE
30 mm
US 103 E
JP09280
Without level control
1/N/PE~230 V
1.37 kW
0.98 kW
6 A
Integrated
Safety
30 mm
US 103 D
JP09258
Without level control
3/PE~400 V
1.36 kW
1.06 kW
2.4 A
Integrated
CEE
30 mm
US 153 E
JP09311
Without level control
1/N/PE~230 V
1.6 kW
1.21 kW
7.5 A
on request
Without
30 mm
US 153 D
JP09302
Without level control
3/PE~400 V
1.7 kW
1.41 kW
3.1 A
on request
Without
30 mm
US 73 ES
JP00678
With built-in level control
1/N/PE~230 V
0.83 kW
0.5 kW
3.9 A
Integrated
Safety
30 mm
US 73 DS
JP00679
With built-in level control
3/PE~400 V
0.85 kW
0.6 kW
1.4 A
Integrated
CEE
30 mm
US 103 ES
JP09281
With built-in level control
1/N/PE~230 V
1.37 kW
0.98 kW
6 A
Integrated
Safety
30 mm
US 103 DS
JP09259
With built-in level control
3/PE~400 V
1.36 kW
1.06 kW
2.4 A
Integrated
CEE
30 mm
US 153 ES
JP09247
With built-in level control
1/N/PE~230 V
1.6 kW
1.21 kW
7.5 A
Integrated
Safety
30 mm
US 153 DS
JP09249
With built-in level control
3/PE~400 V
1.7 kW
1.41 kW
3.1 A
Integrated
CEE
30 mm
US 253 D
JP09303
Without level control
3/N/PE~400 V
2.6 kW
2.1 kW
4.4 A
on request
Without
40 mm
US 253 DS
JP09251
With built-in level control
3/N/PE~400 V
2.6 kW
2.1 kW
4.4 A
Integrated
CEE

Spares

We stock many Jung Pumpen spares at our warehouse in Aldermaston. Please call the office on 0118 9821 555 if you need help, or to place an order.

Type Code No.
Capacitor JP46015 73
Capacitor JP46016 103
Capacitor JP46017 153
Contactor JP46056
Microswitch JP46351 ES
Microswitch JP46352 DS
Top cover JP46018 ES, DS
Top cover JP46019 E, D
Float JP46022
Switch shaft JP46020 HE
Switch shaft JP46021 HES
Switch cartridge JP46025
Cable JP42777 73 E/ES, 103 E/ES
Cable JP42779 73 D/DS, 103 D/DS
Cable JP46980 73 HE, 103 HE
Cable JP46013 153 E/ES
Cable JP46014 153 D/DS
Cable JP47221 with A/NZ plug ES
Bearing set JP46042
Rotor shaft JP46035 73 E, HE
Rotor shaft JP46036 73 D
Rotor shaft JP46037 103 E, HE
Rotor shaft JP46038 103 D
Rotor shaft JP46039 153 E
Rotor shaft JP46040 153 D
Stator + Housing JP46027 73 E
Stator + Housing JP46028 73 D
Stator + Housing JP46033 73 HE
Stator + Housing JP46029 103 E
Stator + Housing JP46030 103 D
Stator + Housing JP46034 103 HE
Stator + Housing JP46031 153 E
Stator + Housing JP46032 153 D
Seal set JP46041
Impeller JP46052 73
Impeller JP46053 103
Impeller JP46054 153 E
Impeller JP46055 153 D
Pump casing JP46044
Oil screw JP46046
Mechanical seal JP46043
Screw set JP46263
Feet JP46047
Feet JP46049 HE
Cover JP46050
Motor protection JP40264 153 ES
Motor protection JP44750 153 DS
1l Oil JP48236

Please download the Jung US 73-253 Waste Water Pump spares list
