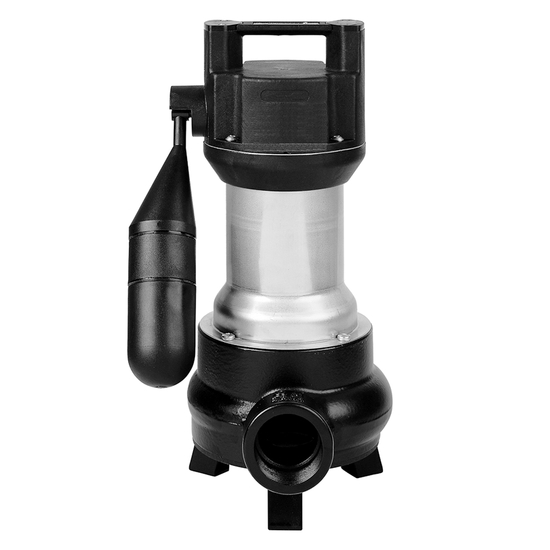

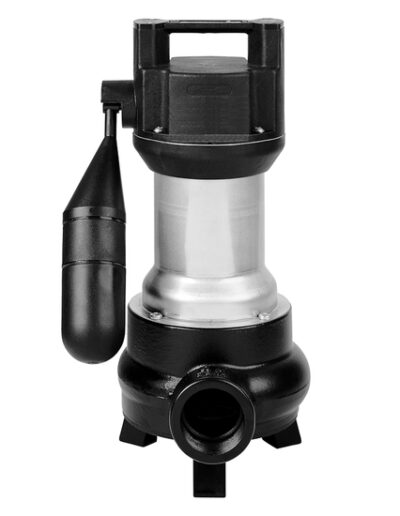

Jung US 75-155 Waste Water Pump

The Jung US 75-155 is a submersible pump suitable for all kinds of sewage.

It’s high performance and high efficiency and has a range of flexible applications. Light weight, it is suitable for portable use. Equipped with a large free passage and a seal system that encapsulates the shaft, the pump is suitable to deliver drainage water with course admixtures.

Technical Datasheet
Category:

Description

An optional flushing device keeps the sump clean. High protection with moisture sealed cable gland and SiC mechanical seal.

The guide rail system ensures ease and comfort for stationary use. This enables the pump to be pulled out of the drain quickly and easily for maintenance or visual inspection.

Key Information

  • High grade protection with moisture sealed cable gland and SiC mechanical seal.
  • Delivery of domestic sewage due to a large free passage
  • Optional flushing device to keep the sump clean
  • Available with or without float switch

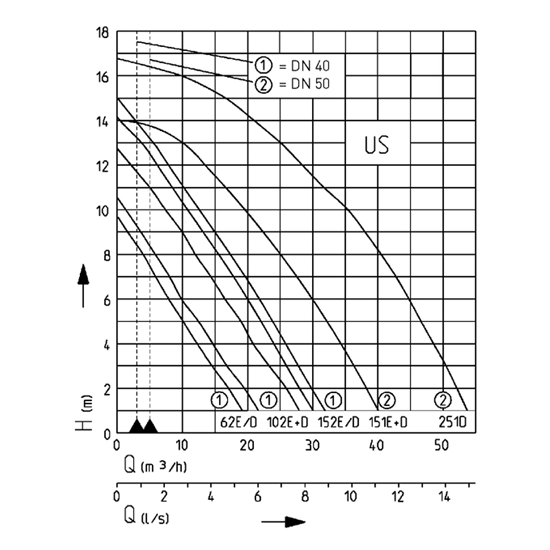

Technical Information

  • 50 mm free passage
  • discharge branch 2″
  • Hmax = 13 m
  • Qmax = 32 m3/h

Models

Type Code No. Ciruit Voltage Motor rating P1 Motor rating P2 Current Motor protection Plug
US 75 E
JP09406
Without level control
1/N/PE~230 V
0.83 kW
0.5 kW
3.9 A
Integrated
Safety
US 75 D
JP09404
Without level control
3/PE~400 V
0.85 kW
0.6 kW
1.4 A
Integrated
CEE
US 105 E
JP09410
Without level control
1/N/PE~230 V
1.37 kW
0.98 kW
6 A
Integrated
Safety
US 105 D
JP09408
Without level control
3/PE~400 V
1.36 kW
1.06 kW
2.4 A
Integrated
CEE
US 155 E
JP09388
Without level control
1/N/PE~230 V
1.6 kW
1.21 kW
7.5 A
on request
Without
US 155 D
JP09390
Without level control
3/PE~400 V
1.7 kW
1.41 kW
3.1 A
on request
Without
US 75 ES
JP09407
With built-in level control
1/N/PE~230 V
0.83 kW
0.5 kW
3.9 A
Integrated
Safety
US 75 DS
JP09405
With built-in level control
3/PE~400 V
0.85 kW
0.6 kW
1.4 A
Integrated
CEE
US 105 ES
JP09411
With built-in level control
1/N/PE~230 V
1.37 kW
0.98 kW
6 A
Integrated
Safety
US 105 DS
JP09409
With built-in level control
3/PE~400 V
1.36 kW
1.06 kW
2.4 A
Integrated
CEE
US 155 ES
JP09389
With built-in level control
1/N/PE~230 V
1.6 kW
1.21 kW
7.5 A
Integrated
Safety
US 155 DS
JP09391
With built-in level control
3/PE~400 V
1.7 kW
1.41 kW
3.1 A
Integrated
CEE
