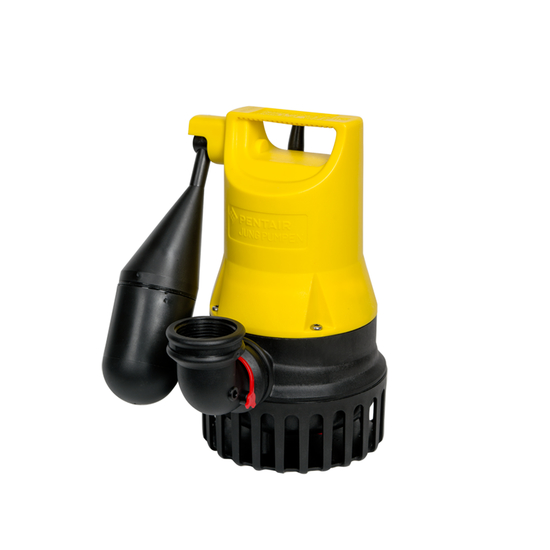

Jung Pumpen u3k Waste Water Pump

The Jung Pumpen u3k (S) is an adaptable centrifugal submersible pump for both fixed and transportable use.

The pump removes rain water, lightly polluted water and domestic waste from household appliances such as washing machines and dishwater, but it is not suited to urinal or lavatory effluent.

Key Information

  • Continuous operation when not submerged
  • Safe to run dry
  • Thermal motor protection
  • Clearly defined switching levels
  • Protection against moisture penetration

Technical Information

  • 10 mm solids handling
  • discharge 1 1/4″
  • Available with or without float switch
  • Hmax = 7 m
  • Qmax = 6,5 m3/h
Category:

Description

The jung pumpen u3k(S) are versatile submersible pumps for stationary and portable use. GID technology for more operational safety, an integrated flushing device to reduce deposits and the integrated low level pumping to remove flooding ensure many years of trouble-free operation.

The U3 K(S) pump rainwater, slightly polluted water or domestic wastewater (grey water), also from household dishwashers and washing machines (also high temperature). In stationary use they removes the water from drains in cellars, laundries or storerooms and serves as a flood protection.

Sliding guide rail systems offer the advantages of quick and easy maintenance. The Easyfix installation sets are particularly convenient. They are pre-assembled ready to plug in and can be installed as single or double systems.

The U3 K(S) can be combined with the above- and underfloor tanks of the Hebefix and Baufix series. Should the sump or tank temporarily run dry, the pump is automatically vented via an opening in the discharge elbow.

The U3 K(S) must not be used for pumping wastewater containing faeces or wastewater from urinal systems If submersible pumps are used outdoors, only a pump with 10 m cable without extension cable may be used in accordance with VDE Regulation 0100. For construction sites and garden ponds, a H07-type cable must be used.

For mildly aggressive media such as brackish water, condensate from condensing boilers, liquid manure etc., the Jung Pumpen U3K spezial should be used.

Models

Type Code No. Ciruit Power line
U3K, 10 m cable
JP50002
Without level control
10m H05RN-F
U3KS, 4 m cable
JP50000
With built-in level control
4m H05RN-F
U3KS, 10 m cable
JP50001
With built-in level control
10m H07RN-F

PDF Downloads

u3k Datasheet
u3k Manual
u3k Spares
u3k Brochure

3D Image

Please allow a short time for the 3D image to load. You can then click on the image to rotate it.

Spares

We stock many Jung Pumpen spares at our warehouse in Aldermaston. Please download the U3K spares list or call the office on 0118 9821 555 if you need help, or to place an order.

Type Code No.
Shift shaft JP42770
Microswitch JP50531
Capacitor JP50535
Top Cover JP50541 U3 K, 10m
Top Cover JP50540 U3 KS, 4m
Top Cover JP50542 U3 KS, 10m
Float JP42771
Motor JP50552
Impeller JP50550
Flushing plugs JP50561
Elbow JP46355
Volute casing JP50555
Seal set JP50559
Screw set JP50557
Strainer base JP46360

Please download the U3K spares list
