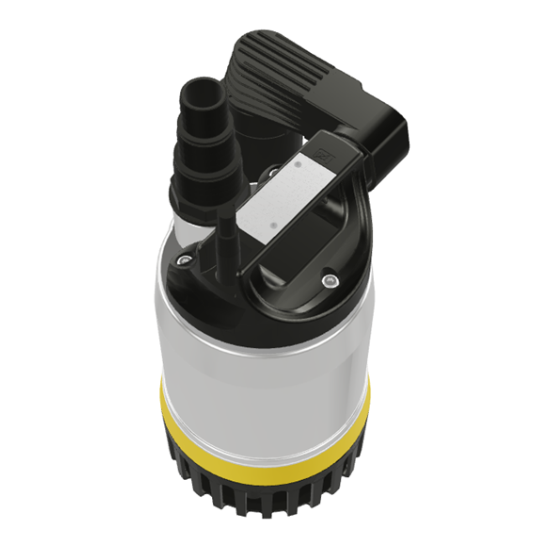

Jung MultiDrain UV3

The Multidrain UV3 is a versatile submersible drainage pump made of stainless steel for portable and stationary use. It pumps rainwater, lightly submersible polluted water and domestic wastewater from e.g. household dishwashers or washing machines (also high temperature). An easy-to-activate flushing device to reduce deposits in the pump sump ensures trouble-free operation and facilitates maintenance.

Motor jacket cooling ensures submerged operation without the risk of overheating. In case of dry running, the thermal motor protection switches off the pump before reaching a critical temperature. These protective measures, plus the swing-type check valve and a hose connection included in the scope of delivery, make the Multidrain a perfect pump for mobile applications.

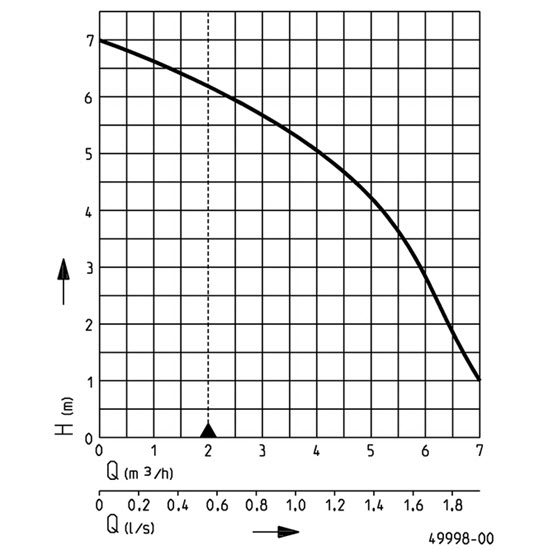

Technical Datasheet
Category:

Description

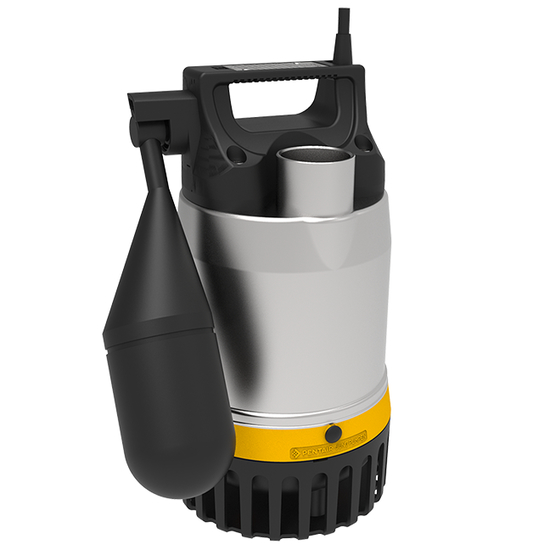

In stationary use, the UV3 S with automatic switch removes water from drainage shafts in cellars, washing basements or storage rooms and serves as backflow protection. If the shaft or container should run dry temporarily, air cushions can escape through the ventilation opening. When the strainer base is removed, the pump removes the water down to a level of 5 mm. If submersible pumps are used outdoors, only a pump with 10 m cable without extension cable may be used in accordance with VDE Regulation 0100. For construction sites and garden ponds, an H07-type cable must be used.

Key Information

  • High quality stainless steel design
  • Especially suitable for mobile use
  • Cooling jacket for motor housing
  • Free passage 10 mm
  • Discharge branch vertical 1 1/4“

Technical Information

  • Flushing device
  • Self ventilation
  • Moisture sealed cable inlet
  • Fluid temperature 35 °C, temporarily 70 °C (10 min.)

Models

Type Code No. Ciruit Power line
Multidrain UV3, 10 m cable
JP50248
Without level control
10m H05RN-F
Multidrain UV3 S, 4 m cable
JP50249
With built-in level control
4m H05RN-F
Multidrain UV3 S, 10 m cable
JP50312
With built-in level control
10m H07RN-F
Multidrain UV3 SF, 10 m cable
JP50313
With built-in level control
10m H07RN-F

Spares

We stock many Jung Pumpen spares at our warehouse in Aldermaston. Please call the office on 0118 9821 555 if you need help, or to place an order.

Type Code No.
Shift Shaft JP42770
Top Cover JP50538 UV3, 10 m
Top Cover JP50536 UV3 S, 4m
Top Cover JP50537 UV3 S, 10 m
Top Cover JP50539 UV3 SF, 10 m
Float JP50563
Float JP42771
Microswitch JP50532
Capacitor JP50535
Pump body JP50548
Impeller JP50550
Motor JP50554
Intermediate Cover JP50549
Seal Set JP50560
Volute casing JP50556
Flushing plugs JP50561
Motor Sealing JP46385
Screw set JP50558
Strainer base JP46360

Please download the Jung MultiDrain UV3 spares list
