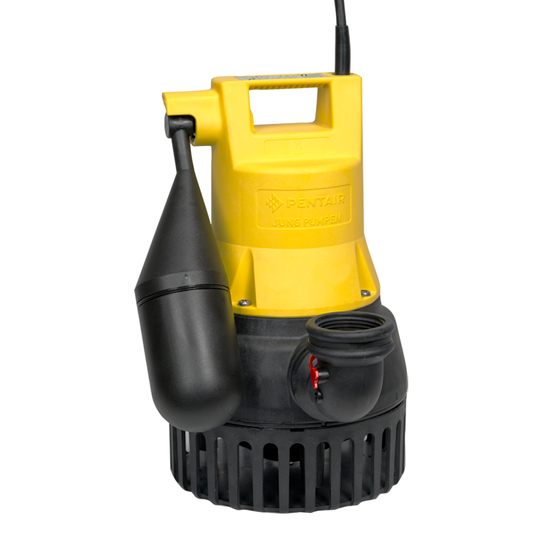

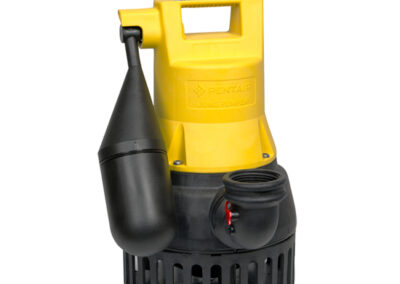

Jung U5K Waste Water Pump

The approved submersible sump pump U 3 KS has got a big brother now with the U 5 KS. There is a wide range of accessory available for both of them, e. g. alarm systems, swing-type check valves, etc.
It is available with or without float switch.
Technical Datasheet
Category:

The U 5 K (S) is particularly maintenance-friendly due to the guide rail GR 32. It can come in ready-assembled tanks e. g. Hebefix 100 or Baufix 100/200 and is portable for clearing floods, emptying drainage sumps, irrigation.

It provides continuous operation when not submerged due to a motor cooling jacket.

Key Information

  • Thermal motor protection
  • Safe to run dry
  • Longitudinally Moisture Sealed Cable inlet
  • Clearly defined switching levels
  • Variable free passage (10/20 mm)

Technical Information

  • 20mm Free solids handling
  • 1.25 inch Discharge
  • 8m Hmax
  • 11m3/h Qmax

Models

Type Code No. Ciruit Power line
U5K, 10 m cable
JP09386
Without level control
10m H05RN-F
U5KS, 4 m cable
JP09387
With built-in level control
4m H05RN-F
U5KS, 10 m cable
JP09417
With built-in level control
10m H07RN-F

3D Image

Please allow a short time for the 3D image to load. You can then click on the image to rotate it.

Spares

We stock many Jung Pumpen spares at our warehouse in Aldermaston. Please call the office on 0118 9821 555 if you need help, or to place an order.

Type Code No.
Shift shaft JP42770
Microswitch JP46351
Capacitor JP46015
Top Cover JP46389 U5 K, 10m
Top Cover JP46390 U5 KS, 4m
Top Cover JP46391 U5 KS, 10m
Float JP42771
Motor JP46388
Seals JP46385
Impeller JP46363
Elbow JP46355
Rubber flap JP50774
Volute casing JP46364
Seal set JP46354
Cover JP46387
Screw set JP42773
Strainer base JP46365

Please download the U5K spares list
