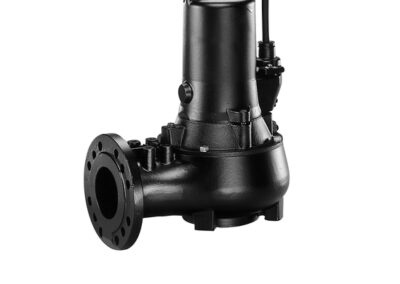

MultiFree-Pumps

MultiFree Submersible Pumps with vortex impeller: MultiFree-pumps are suitable for handling effluent or sewage in municipal and industrial pumping stations as well in surface water drainage applications. The smaller types are also used very successfully as portable units to deal with emergency situations.

Technical Datasheet

Description

Key Information

  • Sewage
  • raw effluent
  • raw sludge
  • effluent which contains fibrous matter prone to matting
  • effluent which contains solids
  • abrasive effluent
  • effluent which contains trapped air or gas
  • surface water
  • mixed water
  • rainwater
  • Available as explosion protected pumps (type UFK)

Models

Type Code No. Voltage Motor rating P1 Motor rating P2 Current Fuse S3 Ex-proof

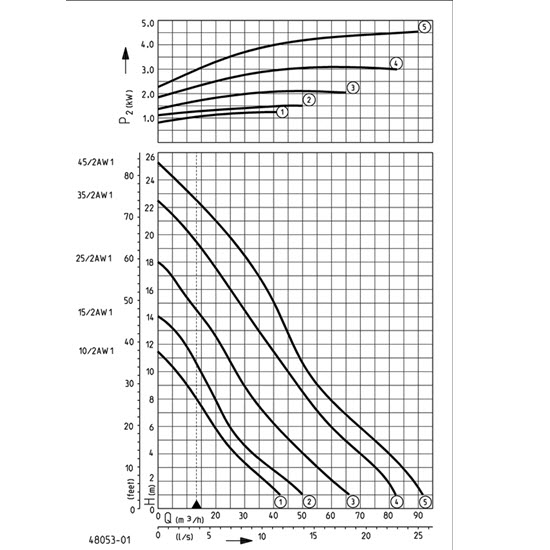

MultiFree 10/2 AW1
JP47280
3/PE~400 V
1.7 kW
1.4 kW
3.3 A
10 A
50 %
Without ex-proof
MultiFree 15/2 AW1
JP47278
3/PE~400 V
2.1 kW
1.7 kW
3.8 A
10 A
45 %
Without ex-proof
MultiFree 25/2 AW1
JP09149
3/PE~400 V
2.9 kW
2.3 kW
4.9 A
10 A
35 %
Without ex-proof
MultiFree 35/2 AW1
JP09151
3/PE~400 V
4.05 kW
3.34 kW
7.1 A
10 A
35 %
Without ex-proof
MultiFree 45/2 AW1
JP46796
3/PE~400 V
6 kW
5 kW
9.4 A
20 A
20 %
Without ex-proof
MultiFree 10/2 AW1, Ex
JP47281
3/PE~400 V
1.7 kW
1.4 kW
3.3 A
10 A
50 %
With ex-proof
MultiFree 15/2 AW1, Ex
JP47279
3/PE~400 V
2.1 kW
1.7 kW
3.8 A
10 A
45 %
With ex-proof
MultiFree 25/2 AW1, Ex
JP09150
3/PE~400 V
2.9 kW
2.3 kW
4.9 A
10 A
35 %
With ex-proof
MultiFree 35/2 AW1, Ex
JP09152
3/PE~400 V
4.05 kW
3.34 kW
7.1 A
10 A
35 %
With ex-proof
MultiFree 45/2 AW1, Ex
JP46870
3/PE~400 V
6 kW
5 kW
8.9 A
20 A
20 %
With ex-proof
MultiFree 15/4 AW2
JP46791
3/PE~400 V
1.8 kW
1.4 kW
3.5 A
10 A
40 %
Without ex-proof
MultiFree 25/4 AW2
JP46793
3/PE~400 V
2.7 kW
2 kW
4.6 A
10 A
25 %
Without ex-proof
MultiFree 35/4 AW2
JP46794
3/PE~400 V
4.2 kW
3.18 kW
7.8 A
10 A
20 %
Without ex-proof
MultiFree 45/4 AW2
JP46795
3/PE~400 V
5.6 kW
4.3 kW
9.8 A
20 A
10 %
Without ex-proof
MultiFree 15/4 AW2, Ex
JP46792
3/PE~400 V
1.8 kW
1.4 kW
3.5 A
10 A
40 %
With ex-proof
MultiFree 25/4 AW2, Ex
JP46867
3/PE~400 V
2.7 kW
2 kW
4.6 A
10 A
25 %
With ex-proof
MultiFree 35/4 AW2, Ex
JP46868
3/PE~400 V
4.2 kW
3.18 kW
7.8 A
10 A
20 %
With ex-proof
MultiFree 45/4 AW2, Ex
JP46869
3/PE~400 V
5.6 kW
4.3 kW
9.8 A
20 A
10 %
With ex-proof
MultiFree 25/2 BW1
JP09498
3/PE~400 V
3.27 kW
2.55 kW
5.4 A
10 A
25 %
Without ex-proof
MultiFree 35/2 BW1
JP09500
3/PE~400 V
4.84 kW
3.95 kW
8.2 A
10 A
25 %
Without ex-proof
MultiFree 45/2 BW1
JP46856
3/PE~400 V
6 kW
5 kW
9.4 A
20 A
20 %
Without ex-proof
MultiFree 75/2 BW1
JP46873
3/PE~400/690 V
8.05 kW
6.8 kW
9.4 A
7.9 A
20 A
25 %
Without ex-proof
MultiFree 100/2 BW1
JP46871
3/PE~400/690 V
12.2 kW
10.7 kW
21 A
12.2 A
25 A
20 %
Without ex-proof
MultiFree 25/2 BW1, Ex
JP09499
3/PE~400 V
3.27 kW
2.55 kW
5.4 A
10 A
25 %
With ex-proof
MultiFree 35/2 BW1, Ex
JP09501
3/PE~400 V
4.84 kW
3.95 kW
8.2 A
10 A
25 %
With ex-proof
MultiFree 45/2 BW1, Ex
JP46857
3/PE~400 V
6 kW
5 kW
9.4 A
20 A
20 %
With ex-proof
MultiFree 75/2 BW1, Ex
JP46874
3/PE~400/690 V
8.05 kW
6.8 kW
9.4 A
7.9 A
20 A
25 %
With ex-proof
MultiFree 100/2 BW1, Ex
JP46872
3/PE~400/690 V
12.2 kW
0.7 kW
21 A
12.2 A
25 A
20 %
With ex-proof
MultiFree 15/4 BW1
JP09455
3/PE~400 V
2.2 kW
1.7 kW
4 A
10 A
35 %
Without ex-proof
MultiFree 25/4 BW1
JP09456
3/PE~400 V
2.8 kW
2.1 kW
4.7 A
10 A
25 %
Without ex-proof
MultiFree 35/4 BW1
JP09457
3/PE~400 V
4.2 kW
3.2 kW
7.8 A
10 A
20 %
Without ex-proof
MultiFree 45/4 BW2
JP46858
3/PE~400 V
5.5 kW
4.2 kW
9.6 A
10 A
10 %
Without ex-proof
MultiFree 55/4 BW2
JP48267
3/PE~400/690 V
6.39 kW
5.1 kW
11 A
6.4 A
16 A
15 %
Without ex-proof
MultiFree 75/4 BW2
JP46877
3/PE~400/690 V
8.25 kW
6.7 kW
14.2 A
8.2 A
20 A
15 %
Without ex-proof
MultiFree 100/4 BW2
JP46875
3/PE~400/690 V
10 kW
8.4 kW
17.6 A
10.2 A
25 A
20 %
Without ex-proof
MultiFree 15/4 BW1, Ex
JP09458
3/PE~400 V
2.2 kW
1.7 kW
4 A
10 A
35 %
With ex-proof
MultiFree 25/4 BW1, Ex
JP09459
3/PE~400 V
2.8 kW
2.1 kW
4.7 A
10 A
25 %
With ex-proof
MultiFree 35/4 BW1, Ex
JP09460
3/PE~400 V
4.2 kW
3.2 kW
7.8 A
10 A
20 %
With ex-proof
MultiFree 45/4 BW2, Ex
JP46859
3/PE~400 V
5.5 kW
4.2 kW
9.6 A
10 A
10 %
With ex-proof
MultiFree 55/4 BW2, Ex
JP48268
3/PE~400/690 V
6.39 kW
5.1 kW
11 A
6.4 A
16 A
15 %
With ex-proof
MultiFree 75/4 BW2, Ex
JP46878
3/PE~400/690 V
8.25 kW
6.7 kW
14.2 A
8.2 A
20 A
15 %
With ex-proof
MultiFree 100/4 BW2, Ex
JP46876
3/PE~400/690 V
10 kW
8.4 kW
17.6 A
10.2 A
25 A
20 %
With ex-proof
MultiFree 45/2 CW1
JP47352
3/PE~400 V
6 kW
5 kW
9.4 A
20 A
20 %
Without ex-proof
MultiFree 75/2 CW1
JP46881
3/PE~400/690 V
8.1 kW
6.8 kW
13.7 A
7.9 A
20 A
25 %
Without ex-proof
MultiFree 100/2 CW1
JP46879
3/PE~400/690 V
12.2 kW
10.7 kW
21 A
12.2 A
25 A
20 %
Without ex-proof
MultiFree 45/2 CW1, Ex
JP47353
3/PE~400 V
6 kW
5 kW
9.4 A
20 A
20 %
With ex-proof
MultiFree 75/2 CW1, Ex
JP47229
3/PE~400/690 V
8.1 kW
6.8 kW
13.7 A
7.9 A
20 A
25 %
With ex-proof
MultiFree 100/2 CW1, Ex
JP46880
3/PE~400/690 V
12.2 kW
10.7 kW
21 A
12.2 A
25 A
20 %
With ex-proof
MultiFree 10/4 CW1
JP09610
3/PE~400 V
1.8 kW
1.4 kW
3.6 A
10 A
40 %
Without ex-proof
MultiFree 15/4 CW1
JP09612
3/PE~400 V
2.4 kW
1.9 kW
4.4 A
10 A
30 %
Without ex-proof
MultiFree 25/4 CW1
JP09655
3/PE~400 V
2.8 kW
2.04 kW
4.7 A
10 A
20 %
Without ex-proof
MultiFree 35/4 CW1
JP09858
3/PE~400 V
4 kW
3 kW
7.4 A
10 A
20 %
Without ex-proof
MultiFree 45/4 CW2
JP47236
3/PE~400 V
5.3 kW
4.1 kW
9.3 A
20 A
10 %
Without ex-proof
MultiFree 55/4 CW2
JP47372
3/PE~400/690 V
6.39 kW
5.1 kW
11 A
6.4 A
16 A
15 %
Without ex-proof
MultiFree 75/4 CW2
JP47234
3/PE~400/690 V
8.25 kW
6.6 kW
14.2 A
8.2 A
20 A
15 %
Without ex-proof
MultiFree 100/4 CW3
JP47354
3/PE~400/690 V
12.95 kW
10.6 kW
20.3 A
11.7 A
25 A
15 %
Without ex-proof
MultiFree 10/4 CW1, Ex
JP09609
3/PE~400 V
1.8 kW
1.4 kW
3.6 A
10 A
40 %
With ex-proof
MultiFree 15/4 CW1, Ex
JP09611
3/PE~400 V
2.4 kW
1.9 kW
4.4 A
10 A
30 %
With ex-proof
MultiFree 25/4 CW1, Ex
JP09656
3/PE~400 V
2.8 kW
2.04 kW
4.7 A
10 A
20 %
With ex-proof
MultiFree 35/4 CW1, Ex
JP09859
3/PE~400 V
4 kW
3 kW
7.4 A
10 A
20 %
With ex-proof
MultiFree 45/4 CW2, Ex
JP47237
3/PE~400 V
5.3 kW
4.2 kW
9.3 A
10 A
10 %
With ex-proof
MultiFree 55/4 CW2, Ex
JP47373
3/PE~400/690 V
6.39 kW
5.1 kW
11 A
6.4 A
16 A
15 %
With ex-proof
MultiFree 75/4 CW2, Ex
JP47235
3/PE~400/690 V
8.25 kW
6.6 kW
14.2 A
8.2 A
20 A
15 %
With ex-proof
MultiFree 100/4 CW3, Ex
JP47355
3/PE~400/690 V
12.95 kW
10.6 kW
20.3 A
11.7 A
25 A
15 %
With ex-proof

3D Image

Please allow a short time for the 3D image to load. You can then click on the image to rotate it.

MULTIFREE 10 - 35 Spares

We stock many Jung Pumpen spares at our warehouse in Aldermaston. Please call the office on 0118 9821 555 if you need help, or to place an order.

MULTIFREE 10 – 35 Code No.
Cable 10m JP46259
Cable EX, 5 m JP47501
Cable EX, 10 m JP45469
Cable EX, 15 m JP45583
Cable EX, 20 m JP45584
Shackle JP45904
Stator + Housing 10/2, 15/2, 25/2 JP44008
Stator + Housing 35/2 JP46211
Stator + Housing 10/4, 15/4, 25/4 JP47042
Stator + Housing 35/4 JP47045
Connector JP46572
Bearing set JP46214
Rotor shaft 10/2, 15/2, 25/2 JP48339
Rotor shaft 35/2 JP48340
Rotor shaft 10/4, 15/4, 25/4 JP48342
Rotor shaft 35/4 JP48343
Bearing housing JP46720
Shaft cover JP47043
Oil screw JP46046
Impeller 10/2 AW1 JP48351
Impeller 15/2 AW1 JP48352
Impeller 25/2 AW1 JP48353
Impeller 35/2 AW1 JP48354
Impeller 15/4 AW2 JP48355
Impeller 25/4 AW2 JP48356
Impeller 35/4 AW2 JP48357
Impeller 25/2 BW1 JP48359
Impeller 35/2 BW1 JP48360
Impeller 10/4 CW1 JP48362
Impeller 15/4 BW1, 15/4 CW1 JP48363
Impeller 25/4 BW1, 25/4 CW1 JP48364
Impeller 35/4 BW1, 35/4 CW1 JP48365
Mechanical seal JP46567
Set of seals JP47077
Pump casing AW1 JP46719
Pump casing AW2 JP48591
Pump casing BW1 JP46718
Pump casing CW1 JP46717
Screw set JP47076
1l Oil JP48236
10x O-Ring 38×3,5 JP48109
10x Splint / Cotter pins 1,6×20 JP46182
10x O-Ring 10×2,5 JP48088

Please download the MULTIFREE 10 – 35 spares list

MULTIFREE 45 Spares

We stock many Jung Pumpen spares at our warehouse in Aldermaston. Please call the office on 0118 9821 555 if you need help, or to place an order.

MULTIFREE 45 Code No.
Cable 10m JP46259
Cable EX, 5 m JP47501
Cable EX, 10 m JP45469
Cable EX, 15 m JP45583
Cable EX, 20 m JP45584
Shackle JP45904
Stator + Housing 45/2 JP48376
Stator + Housing 45/4 JP48377
Connector JP46572
Bearing set JP48378
Rotor shaft 45/2 JP48341
Rotor shaft 45/4 JP48344
Bearing cover JP48379
Air-/Oil screw JP46046
Bearing housing AW1, AW2, BW1, CW1 JP48384
Bearing housing BW2, CW2 JP4838
Shaft cover JP48380
Mechanical seal JP48381
Impeller 45/2 JP48361
Impeller 45/4 AW2 JP48358
Impeller 45/4 BW2, CW2 JP48366
Set of seals JP48386
Pump casing AW1 JP46719
Pump casing AW2 JP48591
Pump casing BW1 JP46718
Pump casing BW2 JP48592
Pump casing CW1 JP46717
Pump casing CW2 JP46723
Screw set JP48387
1l Oil JP48236

Please download the MULTIFREE 45 spares list

MULTIFREE 55 - 100 Spares

We stock many Jung Pumpen spares at our warehouse in Aldermaston. Please call the office on 0118 9821 555 if you need help, or to place an order.

Pump casing AW1JP46719

MULTIFREE 55 – 100 Code No.
Cable 10m JP46575
Cable EX, 10 m JP46576
Cable EX, 15 m JP46634
Cable EX, 20 m JP46635
Cable EX, 25 m JP46636
Cable EX, 30 m JP46637
Shackle JP45904
Stator + Housing 55/4 JP47142
Stator + Housing 75/2 JP46574
Stator + Housing 75/4 JP47143
Stator + Housing 100/2 JP47144
Stator + Housing 100/4 JP47178
Connector JP46573
Bearing set JP47137
Rotor shaft 55/4 JP4834
Rotor shaft 75/2 JP48346
Rotor shaft 75/4 JP48349
Rotor shaft 100/2 JP48347
Rotor shaft 100/4 JP48350
Bearing Cover JP47155
Oil screw JP46046
Bearing housing JP47158
Shaft cover JP47181
Partition flange JP47159
Mechanical seal JP46587
Mechanical seal JP47140
Impeller 55/4 BW2 JP48369
Impeller 55/4 CW2 JP48372
Impeller 75/2 BW1, CW1 JP48367
Impeller 75/4 BW2 JP48370
Impeller 75/4 CW2 JP48373
Impeller 100/2 BW1, CW1 JP48368
Impeller 100/4 BW2 JP48371
Impeller 100/4 CW3 JP48374
Set of seals JP47138
Pump casing BW1 JP48591
Pump casing BW2 JP46718
Pump casing CW1 JP46717
Pump casing CW2 JP46723
Pump casing CW3 JP48593
Screw set JP47139
1l Oil JP48236

Please download the MULTIFREE 55 – 100 spares list
