Description
Key Information
- effluent which contains fibrous matter
- mixed water
- effluent which contains solids
- rainwater
- raw effluent
- raw sludge
MultiStream Submersible Pumps with adjustible Impeller (single-channel)
MultiStream-pumps are suitable for handling effluent or sewage in municipal and industrial pumping stations as well as in surface water drainage applications. The smaller types are also used very successfully as portable units to deal with emergency situations.
Technical DatasheetModels
| Type | Code No. | New Code No. (06/2023) | Voltage | Motor rating P1 | Motor rating P2 | Current | Fuse | S3 | Ex-proof | Pressure outlet |
|---|---|---|---|---|---|---|---|---|---|---|
|

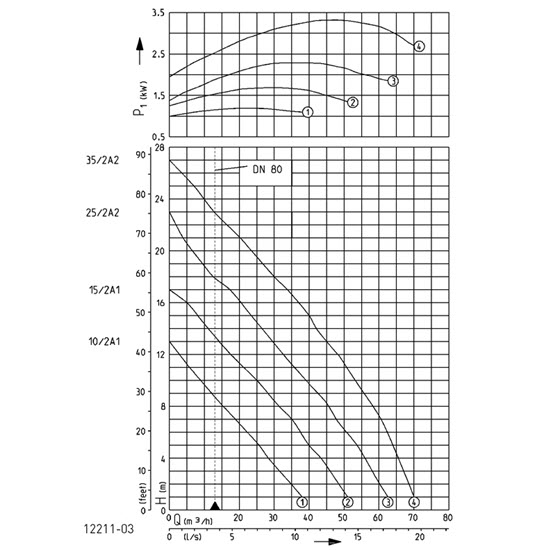

MultiStream 10/2 A1
|
JP09615
|
JP50384
|
3/PE~400 V
|
1.3 kW
|
1.1 kW
|
2.7 A
|
10 A
|
60 %
|
Without ex-proof
|
DN 65
|
|
MultiStream 15/2 A1
|
JP09616
|
JP50386
|
3/PE~400 V
|
1.8 kW
|
1.5 kW
|
3.3 A
|
10 A
|
50 %
|
Without ex-proof
|
DN 65
|
|
MultiStream 25/2 A2
|
JP09617
|
JP50388
|
3/PE~400 V
|
2.6 kW
|
2.1 kW
|
4.4 A
|
10 A
|
40 %
|
Without ex-proof
|
DN 65
|
|
MultiStream 35/2 A2
|
JP09651
|
JP50390
|
3/PE~400 V
|
3.7 kW
|
3.04 kW
|
6.6 A
|
10 A
|
40 %
|
Without ex-proof
|
DN 65
|
|
MultiStream 10/2 A1, Ex
|
JP09628
|
JP50385
|
3/PE~400 V
|
1.3 kW
|
1.1 kW
|
2.7 A
|
10 A
|
60 %
|
With ex-proof
|
DN 65
|
|
MultiStream 15/2 A1, Ex
|
JP09629
|
JP50387
|
3/PE~400 V
|
1.8 kW
|
1.5 kW
|
3.3 A
|
10 A
|
50 %
|
With ex-proof
|
DN 65
|
|
MultiStream 25/2 A2, Ex
|
JP09630
|
JP50389
|
3/PE~400 V
|
2.6 kW
|
2.1 kW
|
4.4 A
|
10 A
|
40 %
|
With ex-proof
|
DN 65
|
|
MultiStream 35/2 A2, Ex
|
JP09653
|
JP50391
|
3/PE~400 V
|
3.7 kW
|
3.04 kW
|
6.6 A
|
10 A
|
40 %
|
With ex-proof
|
DN 65
|
|
MultiStream 25/2 B1
|
JP09618
|
JP50392
|
3/PE~400 V
|
2.6 kW
|
2.1 kW
|
4.4 A
|
10 A
|
40 %
|
Without ex-proof
|
DN 80
|
|
MultiStream 35/2 B2
|
JP09652
|
JP50394
|
3/PE~400 V
|
3.7 kW
|
3.04 kW
|
6.6 A
|
10 A
|
40 %
|
Without ex-proof
|
DN 80
|
|
MultiStream 55/2 B2
|
JP09663
|
JP09663
|
3/PE~400/690 V
|
5.2 kW
|
4.45 kW
|
8.7 A
5 A
|
16 A
|
40 %
|
Without ex-proof
|
DN 80
|
|
MultiStream 75/2 B5
|
JP00485
|
JP00485
|
3/PE~400/690 V
|
7.7 kW
|
6.6 kW
|
13.2 A
7.7 A
|
20 A
|
30 %
|
Without ex-proof
|
DN 80
|
|
MultiStream 100/2 B5
|
JP09740
|
JP09740
|
3/PE~400/690 V
|
10.5 kW
|
9.2 kW
|
17.6 A
10.2 A
|
25 A
|
30 %
|
Without ex-proof
|
DN 80
|
|
MultiStream 200/2 B6
|
JP00492
|
JP00492
|
3/PE~400/690 V
|
17.3 kW
|
15.4 kW
|
28.8 A
16.7 A
|
35 A
|
45 %
|
Without ex-proof
|
DN 100
|
|
MultiStream 300/2 B6
|
JP00471
|
JP00471
|
3/PE~400/690 V
|
27 kW
|
24.45 kW
|
43 A
24.7 A
|
50 A
|
35 %
|
Without ex-proof
|
DN 100
|
|
MultiStream 25/2 B1, Ex
|
JP09631
|
JP50393
|
3/PE~400 V
|
2.6 kW
|
2.1 kW
|
4.4 A
|
10 A
|
40 %
|
With ex-proof
|
DN 80
|
|
MultiStream 35/2 B2, Ex
|
JP09654
|
JP50395
|
3/PE~400 V
|
3.7 kW
|
3.04 kW
|
6.6 A
|
10 A
|
40 %
|
With ex-proof
|
DN 80
|
|
MultiStream 55/2 B2, Ex
|
JP09664
|
JP09664
|
3/PE~400/690 V
|
5.2 kW
|
4.45 kW
|
8.7 A
5 A
|
16 A
|
40 %
|
With ex-proof
|
DN 80
|
|
MultiStream 75/2 B5, Ex
|
JP09665
|
JP09665
|
3/PE~400/690 V
|
7.7 kW
|
6.6 kW
|
13.2 A
7.7 A
|
20 A
|
30 %
|
With ex-proof
|
DN 80
|
|
MultiStream 100/2 B5, Ex
|
JP09741
|
JP09741
|
3/PE~400/690 V
|
10.5 kW
|
9.2 kW
|
17.6 A
10.2 A
|
25 A
|
30 %
|
With ex-proof
|
DN 80
|
|
MultiStream 200/2 B6, Ex
|
JP00472
|
JP00472
|
3/PE~400/690 V
|
17.3 kW
|
15.4 kW
|
28.8 A
16.7 A
|
35 A
|
45 %
|
With ex-proof
|
DN 100
|
|
MultiStream 300/2 B6, Ex
|
JP00473
|
JP00473
|
3/PE~400/690 V
|
27 kW
|
24.45 kW
|
43 A
24.7 A
|
50 A
|
35 %
|
With ex-proof
|
DN 100
|
|
MultiStream 10/4 B1
|
JP09620
|
JP50396
|
3/PE~400 V
|
0.95 kW
|
0.73 kW
|
2.4 A
|
10 A
|
50 %
|
Without ex-proof
|
DN 80
|
|
MultiStream 15/4 B3
|
JP09622
|
JP50398
|
3/PE~400 V
|
1.8 kW
|
1.4 kW
|
3.4 A
|
10 A
|
40 %
|
Without ex-proof
|
DN 80
|
|
MultiStream 25/4 B4
|
JP09623
|
JP50400
|
3/PE~400 V
|
2.7 kW
|
2.04 kW
|
4.6 A
|
10 A
|
25 %
|
Without ex-proof
|
DN 80
|
|
MultiStream 35/4 B4
|
JP09647
|
JP50402
|
3/PE~400 V
|
3.5 kW
|
2.65 kW
|
6.9 A
|
10 A
|
25 %
|
Without ex-proof
|
DN 80
|
|
MultiStream 55/4 B6
|
JP00486
|
JP00486
|
3/PE~400/690 V
|
5.8 kW
|
4.65 kW
|
10.2 A
5.9 A
|
16 A
|
20 %
|
Without ex-proof
|
DN 100
|
|
MultiStream 75/4 B6
|
JP00489
|
JP00489
|
3/PE~400/690 V
|
7.2 kW
|
5.9 kW
|
12.8 A
7.4 A
|
20 A
|
25 %
|
Without ex-proof
|
DN 100
|
|
MultiStream 10/4 B1, Ex
|
JP09633
|
JP50397
|
3/PE~400 V
|
0.95 kW
|
0.73 kW
|
2.4 A
|
10 A
|
50 %
|
With ex-proof
|
DN 80
|
|
MultiStream 15/4 B3, Ex
|
JP09635
|
JP50399
|
3/PE~400 V
|
1.8 kW
|
1.4 kW
|
3.4 A
|
10 A
|
40 %
|
With ex-proof
|
DN 80
|
|
MultiStream 25/4 B4, Ex
|
JP09636
|
JP50401
|
3/PE~400 V
|
2.7 kW
|
2.04 kW
|
4.6 A
|
10 A
|
25 %
|
With ex-proof
|
DN 80
|
|
MultiStream 35/4 B4, Ex
|
JP09649
|
JP50403
|
3/PE~400 V
|
3.5 kW
|
2.65 kW
|
6.9 A
|
10 A
|
25 %
|
With ex-proof
|
DN 80
|
|
MultiStream 55/4 B6, Ex
|
JP09666
|
JP09666
|
3/PE~400/690 V
|
5.8 kW
|
4.65 kW
|
10.2 A
5.9 A
|
16 A
|
20 %
|
With ex-proof
|
DN 100
|
|
MultiStream 75/4 B6, Ex
|
JP09667
|
JP09667
|
3/PE~400/690 V
|
7.2 kW
|
5.9 kW
|
12.8 A
7.4 A
|
20 A
|
25 %
|
With ex-proof
|
DN 100
|
|
MultiStream 25/4 C1
|
JP09624
|
JP50404
|
3/PE~400 V
|
2.4 kW
|
1.9 kW
|
4.2 A
|
10 A
|
30 %
|
Without ex-proof
|
DN 100
|
|
MultiStream 35/4 C1
|
JP09648
|
JP50406
|
3/PE~400 V
|
3.5 kW
|
2.65 kW
|
6.9 A
|
10 A
|
25 %
|
Without ex-proof
|
DN 100
|
|
MultiStream 55/4 C5
|
JP09901
|
JP09901
|
3/PE~400/690 V
|
5.8 kW
|
4.65 kW
|
10.2 A
5.9 A
|
16 A
|
20 %
|
Without ex-proof
|
DN 100
|
|
MultiStream 75/4 C5
|
JP09904
|
JP09904
|
3/PE~400/690 V
|
7.2 kW
|
5.9 kW
|
12.8 A
7.4 A
|
20 A
|
25 %
|
Without ex-proof
|
DN 100
|
|
MultiStream 100/4 C5
|
JP09275
|
JP09275
|
3/PE~400/690 V
|
9.5 kW
|
7.94 kW
|
17.2 A
10 A
|
25 A
|
25 %
|
Without ex-proof
|
DN 100
|
|
MultiStream 150/4 C6
|
JP09882
|
JP09882
|
3/PE~400/690 V
|
15 kW
|
13.2 kW
|
26.7 A
15.5 A
|
35 A
|
40 %
|
Without ex-proof
|
DN 100
|
|
MultiStream 230/4 C6
|
JP09885
|
JP09885
|
3/PE~400/690 V
|
19.3 kW
|
17 kW
|
34.1 A
19.8 A
|
35 A
|
35 %
|
Without ex-proof
|
DN 100
|
|
MultiStream 300/4 C6
|
JP09888
|
JP09888
|
3/PE~400/690 V
|
25.5 kW
|
22.65 kW
|
45.5 A
26.4 A
|
50 A
|
25 %
|
Without ex-proof
|
DN 100
|
|
MultiStream 25/4 C1, Ex
|
JP09637
|
JP50405
|
3/PE~400 V
|
2.4 kW
|
1.9 kW
|
4.2 A
|
10 A
|
30 %
|
With ex-proof
|
DN 100
|
|
MultiStream 35/4 C1, Ex
|
JP09650
|
JP50407
|
3/PE~400 V
|
3.5 kW
|
2.65 kW
|
6.9 A
|
10 A
|
25 %
|
With ex-proof
|
DN 100
|
|
MultiStream 55/4 C5, Ex
|
JP09902
|
JP09902
|
3/PE~400/690 V
|
5.8 kW
|
4.65 kW
|
10.2 A
5.9 A
|
16 A
|
20 %
|
With ex-proof
|
DN 100
|
|
MultiStream 75/4 C5, Ex
|
JP09905
|
JP09905
|
3/PE~400/690 V
|
7.2 kW
|
5.9 kW
|
12.8 A
7.4 A
|
20 A
|
25 %
|
With ex-proof
|
DN 100
|
|
MultiStream 100/4 C5, Ex
|
JP09276
|
JP09276
|
3/PE~400/690 V
|
9.5 kW
|
7.94 kW
|
17.2 A
10 A
|
25 A
|
25 %
|
With ex-proof
|
DN 100
|
|
MultiStream 150/4 C6, Ex
|
JP09883
|
JP09883
|
3/PE~400/690 V
|
15 kW
|
13.2 kW
|
26.7 A
15.5 A
|
35 A
|
40 %
|
With ex-proof
|
DN 100
|
|
MultiStream 230/4 C6, Ex
|
JP09886
|
JP09886
|
3/PE~400/690 V
|
19.3 kW
|
17 kW
|
34.1 A
19.8 A
|
35 A
|
35 %
|
With ex-proof
|
DN 100
|
|
MultiStream 300/4 C6, Ex
|
JP09889
|
JP09889
|
3/PE~400/690 V
|
25.5 kW
|
22.65 kW
|
45.5 A
26.4 A
|
50 A
|
25 %
|
With ex-proof
|
DN 100
|
|
MultiStream 55/4 C2
|
JP00487
|
JP00487
|
3/PE~400/690 V
|
5.8 kW
|
4.65 kW
|
10.2 A
5.9 A
|
16 A
|
20 %
|
Without ex-proof
|
DN 150
|
|
MultiStream 75/4 C2
|
JP00490
|
JP00490
|
3/PE~400/690 V
|
7.2 kW
|
5.9 kW
|
12.8 A
7.4 A
|
20 A
|
25 %
|
Without ex-proof
|
DN 150
|
|
MultiStream 100/4 C2
|
JP09678
|
JP09678
|
3/PE~400/690 V
|
9.5 kW
|
7.94 kW
|
17.2 A
10 A
|
25 A
|
25 %
|
Without ex-proof
|
DN 150
|
|
MultiStream 150/4 C3
|
JP00491
|
JP00491
|
3/PE~400/690 V
|
15 kW
|
13.2 kW
|
26.7 A
15.5 A
|
35 A
|
40 %
|
Without ex-proof
|
DN 150
|
|
MultiStream 230/4 C3
|
JP00883
|
JP00883
|
3/PE~400/690 V
|
19.3 kW
|
17 kW
|
34.1 A
19.8 A
|
35 A
|
35 %
|
Without ex-proof
|
DN 150
|
|
MultiStream 300/4 C4
|
JP00493
|
JP00493
|
3/PE~400/690 V
|
25.5 kW
|
22.65 kW
|
45.5 A
26.4 A
|
50 A
|
25 %
|
Without ex-proof
|
DN 150
|
|
MultiStream 55/4 C2, Ex
|
JP09668
|
JP09668
|
3/PE~400/690 V
|
5.8 kW
|
4.65 kW
|
10.2 A
5.9 A
|
16 A
|
20 %
|
With ex-proof
|
DN 150
|
|
MultiStream 75/4 C2, Ex
|
JP09669
|
JP09669
|
3/PE~400/690 V
|
7.2 kW
|
5.9 kW
|
12.8 A
7.4 A
|
20 A
|
25 %
|
With ex-proof
|
DN 150
|
|
MultiStream 100/4 C2, Ex
|
JP09679
|
JP09679
|
3/PE~400/690 V
|
9.5 kW
|
7.94 kW
|
17.2 A
10 A
|
25 A
|
25 %
|
With ex-proof
|
DN 150
|
|
MultiStream 150/4 C3, Ex
|
JP00474
|
JP00474
|
3/PE~400/690 V
|
15 kW
|
13.2 kW
|
26.7 A
15.5 A
|
35 A
|
40 %
|
With ex-proof
|
DN 150
|
|
MultiStream 230/4 C3, Ex
|
JP00884
|
JP00884
|
3/PE~400/690 V
|
19.3 kW
|
17 kW
|
34.1 A
19.8 A
|
35 A
|
35 %
|
With ex-proof
|
DN 150
|
|
MultiStream 300/4 C4, Ex
|
JP00475
|
JP00475
|
3/PE~400/690 V
|
25.5 kW
|
22.65 kW
|
45.5 A
26.4 A
|
50 A
|
25 %
|
With ex-proof
|
DN 150
|
|
MultiStream 230/4 C7
|
JP09392
|
JP09392
|
3/PE~400/690 V
|
19.3 kW
|
17 kW
|
34.1 A
19.8 A
|
35 A
|
35 %
|
Without ex-proof
|
DN 200
|
|
MultiStream 300/4 C7
|
JP09394
|
JP09394
|
3/PE~400/690 V
|
25.5 kW
|
22.65 kW
|
45.5 A
26.4 A
|
50 A
|
25 %
|
Without ex-proof
|
DN 200
|
|
MultiStream 230/4 C7, Ex
|
JP09393
|
JP09393
|
3/PE~400/690 V
|
19.3 kW
|
17 kW
|
34.1 A
19.8 A
|
35 A
|
35 %
|
With ex-proof
|
DN 200
|
|
MultiStream 300/4 C7, Ex
|
JP09395
|
JP09395
|
3/PE~400/690 V
|
25.5 kW
|
22.65 kW
|
45.5 A
26.4 A
|
50 A
|
25 %
|
With ex-proof
|
DN 200
|
PDF Downloads
MultiStream Data sheet
MultiStream 10/2 – UC35 Manual
MultiStream 55 -100 Manual
MultiStream 150 -300 Manual
MultiStream Spare Parts
3D Image
Please allow a short time for the 3D image to load. You can then click on the image to rotate it.
Spares
We stock many Jung Pumpen spares at our warehouse in Aldermaston. Please call the office on 0118 9821 555 if you need help, or to place an order.
To see all the spares for this product range please download the Multistream spare part list
