Jung Pumpen Compli 1000/1000 HL
The perfect pump station where a duplicate system is required. The Jung Pumpen Compli 1000 is the first in the Jung range of duplex pumping stations.
Key Information
- Ideal for commercial situations where Macerators are NOT suitable
- Twin Pump
- Control Panel and high level alarm pre wired
- Complete system ready to install
- Maintenance can be carried out very easily
Technical Information
- Control Panel and high level alarm pre wired
- PE-tank capacity 115 Ltr.
- Hmax = 20 m
- Qmax = 76 m3/h
The Compli 1000 & Compli 1000 HL: The Ultimate Solution for Extra Safeguards
Upgrade your residential units or commercial buildings with the all-new Compli 1000 HL, now equipped with the cutting-edge HighLogo Microprocessor Control Unit for unmatched performance and security.
Duplex Design for Enhanced Safety and Efficiency:
The Compli 1000 and Compli 1000 HL feature a duplex unit with two pumps installed on one tank. This setup ensures extra safeguards and increased pumping capacity. During regular operation, each pump takes turns pumping wastewater alternately. However, during peak loads, both pumps work seamlessly together, guaranteeing continuous and reliable performance.
Advanced Swing-Type Check Valve:
Experience hassle-free maintenance with the new swing-type check valve, crafted from high-tech compound plastic. This innovative design provides a larger maintenance opening, eliminating the need to dismantle the pump when conducting maintenance or replacing the rubber flap, saving you valuable time and effort.
Easy Maintenance with High-Strength Plastic Impellers:
The 10/4 BW, 15/4 BW, and 25/4 BW submersible pumps are equipped with screwed, high-strength plastic impellers. These impellers can be easily dismantled for maintenance purposes, ensuring swift and straightforward servicing whenever needed.
HighLogo Microprocessor Control Unit:
Opt for the versions featuring the HighLogo microprocessor control unit for added convenience and advanced features. This control unit is specially designed for duplex units, providing an array of functions to enhance safety. The intuitive rotary button allows you to effortlessly select various options, all of which are clearly displayed on the large, user-friendly interface.
Stay Informed with GSM Modem Accessory:
Take control of potential faults with the optional GSM modem accessory. It enables you to receive SMS and/or email notifications about any issues, ensuring you can promptly address them with programmable receivers.
Versatile Applications:
The Compli 1000 HL is ideal for a wide range of applications, including hotels, cafés, restaurants, cinemas, theatres, and apartment buildings. Its robust design and advanced features make it a perfect fit for various settings, providing reliable wastewater management and peace of mind.
Models
| Type | Code No. | Voltage | Motor rating P1 | Motor rating P2 | Current | Plug | Oil chamber |
|---|---|---|---|---|---|---|---|
|
compli 1010/4 BWE
|
JP50099
|
1/N/PE~230 V
|
1.55 kW
|
1.1 kW
|
7.1 A
|
Safety
|
No
|
|
compli 1010/4 BW
|
JP50100
|
3/N/PE~400 V
|
1.3 kW
|
1 kW
|
2.8 A
|
CEE-16A
|
No
|
|
compli 1015/4 BW
|
JP50101
|
3/N/PE~400 V
|
2.2 kW
|
1.7 kW
|
3.9 A
|
CEE-16A
|
No
|
|
compli 1025/4 BW
|
JP50102
|
3/N/PE~400 V
|
3 kW
|
2.2 kW
|
5.1 A
|
CEE-16A
|
No
|
|
compli 1025/2 BW
|
JP50103
|
3/N/PE~400 V
|
3.3 kW
|
2.6 kW
|
5.4 A
|
CEE-16A
|
Yes
|
|
compli 1035/2 BW
|
JP50104
|
3/N/PE~400 V
|
4.8 kW
|
4 kW
|
8.2 A
|
CEE-32A
|
Yes
|
|
compli 1010/4 BWE HL
|
JP50105
|
1/N/PE~230 V
|
1.55 kW
|
1.1 kW
|
7.1 A
|
Safety
|
No
|
|
compli 1010/4 BW HL
|
JP50106
|
3/N/PE~400 V
|
1.3 kW
|
1 kW
|
2.8 A
|
CEE-16A
|
No
|
|
compli 1015/4 BW HL
|
JP50107
|
3/N/PE~400 V
|
2.2 kW
|
1.7 kW
|
3.9 A
|
CEE-16A
|
No
|
|
compli 1025/4 BW HL
|
JP50108
|
3/N/PE~400 V
|
3 kW
|
2.2 kW
|
5.1 A
|
CEE-16A
|
No
|
|
compli 1025/2 BW HL
|
JP50109
|
3/N/PE~400 V
|
3.3 kW
|
2.6 kW
|
5.4 A
|
CEE-16A
|
Yes
|
|
compli 1035/2 BW HL
|
JP50110
|
3/N/PE~400 V
|
4.8 kW
|
4 kW
|
8.2 A
|
CEE-32A
|
Yes
|

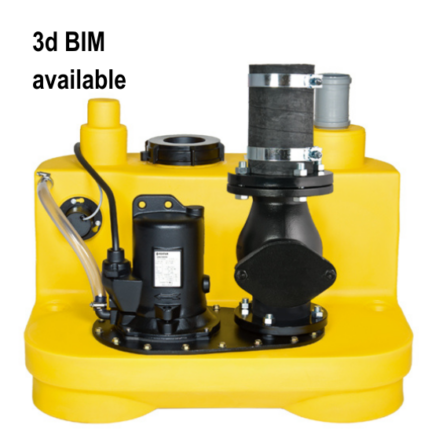

3d Bim Library
Use our 3d Bim library to generate a pdf and image
3D Image
Please allow a short time for the 3D image to load. You can then click on the image to rotate it.
Spares
We stock many Jung Pumpen spares at our warehouse in Aldermaston. Please download the Compli 1000 spares list or call the office on 0118 9821 555 if you need help, or to place an order.
| Compli 1000 | Part No. | Compli 1000HL | Part No. |
|---|---|---|---|
| Level control 4 m | JP50467 | Level control 4 m | JP44861 |
| Level control 15 m | JP50468 | Level control 15 m | JP48227 |
| Seal level control |
JP50479 | Seal level control |
JP50479 |
| Adaper | JP50478 | Adaper | JP50478 |
| Control unit BD 610ECR (1010/4 BWE) | JP50504 | HighLogo 2-610ECP (1010/4 BWE) |
JP50509 |
| Control unit BD 25R (1010/4, 1015/4) | JP50505 | HighLogo 2-25P (1010/4, 1015/4) |
JP50510 |
| Control unit BD 46R (1025/4, 1025/2) | JP50506 | HighLogo 2-46P (1025/4, 1025/2) |
JP50511 |
| Control unit BD 610R (1035/2) | JP50507 | HighLogo 2-610P (1035/2) |
JP50512 |
| Elastic connector | JP43705 | Elastic connector | JP43705 |
| Flange | JP43706 | Flange | JP43706 |
| Control board | JP47304 | HighLogo 2, PCBA | JP50176 |
| Contactor 230V DIL EM-10 4 KW |
JP47671 | HighLogo 2, Door-Set | JP48147 |
| Pump…10/4 BWE, 4 m | JP50470 | Contactor DILMT9 J | JP50518 |
| Pump…10/4 BWE, 15 m | JP50584 | Auxiliary switch 1 1 DILT-XHI11 |
JP50519 |
| Pump…10/4 | JP50469 | Pump…10/4 BWE, 4 m | JP50470 |
| Pump…15/4 | JP48824 | Pump…10/4 BWE, 15 m | JP50584 |
| Pump…25/4 | JP48825 | Pump…10/4 | JP50469 |
| Pump…25/2 | JP48826 | Pump…15/4 | JP48824 |
| Pump…35/2 | JP48827 | Pump…25/4 | JP48825 |
| Pump…10/4, 15M | JP50162 | Pump…25/2 | JP48826 |
| Pump…15/4, 15M | JP50163 | Pump…35/2 | JP48827 |
| Pump…25/4,15M | JP50164 | Pump…10/4, 15M | JP50162 |
| Reflux valve | JP50566 | Pump…15/4, 15M | JP50163 |
| Reducer DN 150/DN 100 |
JP48871 | Pump…25/4,15M | JP50164 |
| Double flap | JP46812 | Reflux valve | JP50566 |
| Clamping flange | JP43713 | Reducer DN 150/DN 100 |
JP48871 |
| Base plate | JP43714 | Double flap | JP46812 |
| Pump ventilation | JP43710 | Clamping flange | JP43713 |
| Sealing tape | JP47966 | Base plate | JP43714 |
| Service lid | JP42798 | Pump ventilation | JP43710 |
| Plug-in connection D50xD59 |
JP45099 | Sealing tape | JP47966 |
| Collar | JP47287 | Service lid | JP42798 |
| Anti floating | JP43709 | Plug-in connection D50xD59 |
JP45099 |
| Tank | JP44861 | Collar | JP47287 |
| Anti floating | JP43709 | ||
| Tank | JP44861 |
Please download the Compli 1000 spares list
