Jung Pumpen Compli 300 E

This is the smallest unit in the Compli range. The Jung Pumpen Compli 300 E Pumping station is a compact pump ideal for domestic situations where only a single pump unit is required.

Key Information

  • Single Pump system for domestic use
  • Complete with control panel and high level alarm
  • Complete System ready to install
  • Maintenance can be carried out very easily

Technical Information

  • inlet height 180 mm
  • Tank, capacity 50 L

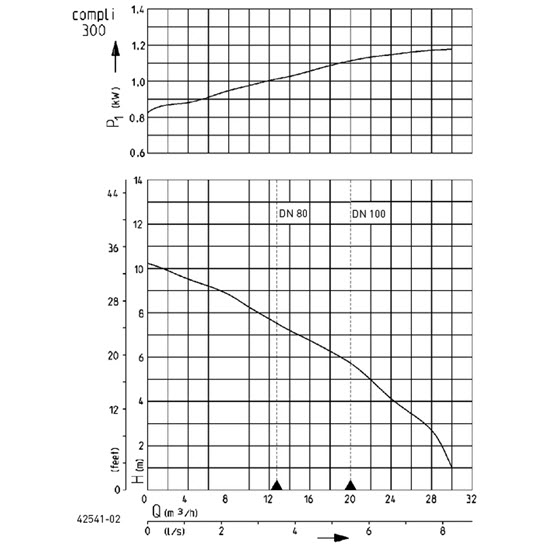

  • Hmax = 10,5 m
  • Qmax = 29 m3/h
  • Discharge branch: DN 80
  • Dimensions: 445 x 525 x 525 mm (HxWxD)



Description

Introducing the Compli 300 E: The Ultimate Small Sewage Lifting Station

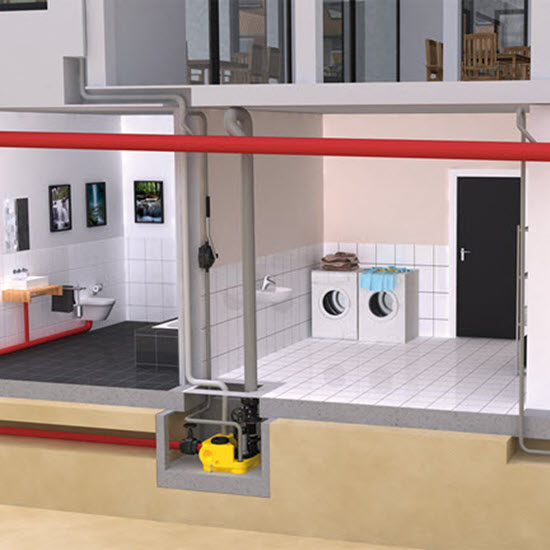

Welcome to the world of Compli series, where innovation meets efficiency. The Compli 300 E, the smallest sewage lifting station specially designed for the disposal of sewage from housing units, such as basement dwellings. Its compact tank and versatile connection facilities make it an all-purpose solution for your sewage needs.

Installation has never been easier. The Compli 300 E’s low weight and integrated control board plug ensure a hassle-free setup, eliminating the need for an electrician to get it up and running. Its submersible unit allows for versatile application even in rooms prone to flooding, ensuring uninterrupted functionality.

For added convenience, the connector housing comes equipped with an integrated control unit. This setup is ideal for well-ventilated rooms that are not susceptible to flooding, making it a secure and reliable choice.

The heart of the Compli 300 E lies in its powerful alternating current motor. Crafted with a rugged grey cast iron volute housing vat, this motor guarantees exceptional stability and quiet operation, providing you with a smooth and reliable experience.

When it comes to sewage lifting stations, the Compli 300 E stands tall in performance, durability, and ease of use.

Models

Type Code No.
compli 300 E
JP50076

PDF Downloads

Compli 300E Data sheet
Compli 300E Manual
Compli 300E Spares
Brochure

3d Bim library

Use our 3d Bim library to generate a pdf and image

3D Image

Please allow a short time for the 3D image to load. You can then click on the image to rotate it.

Spares

We stock many Jung Pumpen spares at our warehouse in Aldermaston. Please download the Compli 300E spares list or call the office on 0118 9821 555 if you need help, or to place an order.

Compli 300E Part No. Motor Compli 300E Part No.
Motor unit JP47288 Control unit JP42802
Elastic connector JP42792 Cable JP50330
Flange JP42793 Level control unit JP50331
Reflux valve JP42794 Capacitor JP46016
Valve flap JP46841 Top Cover JP46019
Basis plate JP42797 Float JP42771
Sealing tape JP47966 Rotor shaft JP47289
Collar JP47287 Bearing set JP46042
Service lid JP42798 Motor seals JP46728
Clamping flange JP42795 Stator + Housing JP46029
Pump ventilation JP42799 Seal set JP42810
Plug in seal JP45099 Screw set JP42809
Tank JP44749 Impeller JP46053
Anti floating JP42796 Bearing housing JP42806
Screw set JP42800
Seal set JP42801

Please download the Compli 300E spares list
