Jung Pumpen Compli 500
Floor Mounted Sewage Pumping Station: The compli 500 has been designed specifically for the sewage from single dwellings with continued sewage water inlet and for a larger tank volume.
Key Information
- Ideal for commercial situations where Macerators are NOT suitable
- Single Pump
- Control Panel and high level alarm pre wired
- Complete system ready to install
- Maintenance can be carried out very easily
Technical Information
- PE-tank capacity 50 Ltr.
- floor to centre inlet 180 / 250 ml

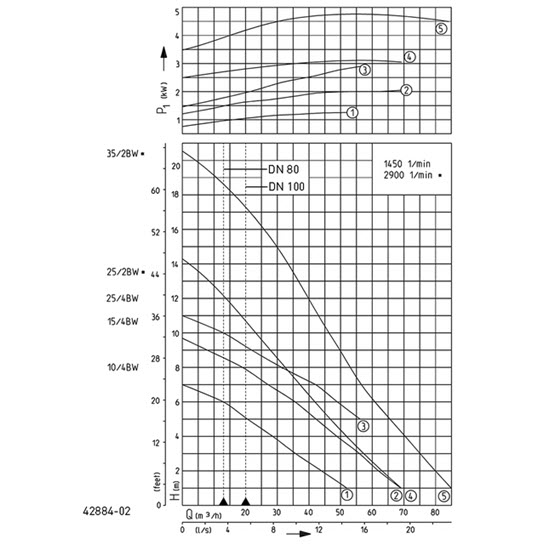

- Hmax = 20 m
- Qmax = 76 m3/h
The Compli 500: Your Reliable Wastewater Disposal Solution
The Compli 500 is the ultimate solution for efficiently disposing of larger volumes of wastewater with ease. Featuring an impressive storage volume of 117 liters, this system is designed to handle substantial loads with unmatched performance. Just like all Compli systems, it comes equipped with a user-friendly control unit, ensuring smooth and dependable operation.
Tailored to meet diverse performance requirements, the Compli offers various motor outputs, providing flexibility for different needs. Building upon the success of the Compli 400 series, this upgraded unit boasts an enhanced control unit with new and exciting features:
- Alarming Convenience: An alarm system that can be conveniently acknowledged with a simple push of a button, keeping you informed and in control.
- Maintenance Made Easy: Equipped with a maintenance interval indicator, ensuring timely service and maximizing system longevity.
- High-Water Alarm Ready: For added peace of mind, the unit comes with a plug-in connection for an additional high-water alarm, providing an extra layer of protection.
Areas of Application:
The Compli 500 is perfect for use in single and two-family houses, catering to the specific needs of residential properties. Whether you are managing a household or handling wastewater in a small community setting, the Compli 500 is the ideal solution for efficient and reliable wastewater disposal.
Models
| Type | Code No. | Motor rating P1 | Motor rating P2 | Current | Oil chamber |
|---|---|---|---|---|---|
|
compli 510/4 BW
|
JP50091
|
1.3 kW
|
1 kW
|
2.8 A
|
No
|
|
compli 515/4 BW
|
JP50092
|
2.2 kW
|
1.7 kW
|
3.9 A
|
No
|
|
compli 525/4 BW
|
JP50093
|
3 kW
|
2.2 kW
|
5.1 A
|
No
|
|
compli 525/2 BW
|
JP50094
|
3.3 kW
|
2.6 kW
|
5.4 A
|
Yes
|
|
compli 535/2 BW
|
JP50095
|
4.8 kW
|
4 kW
|
8.2 A
|
Yes
|

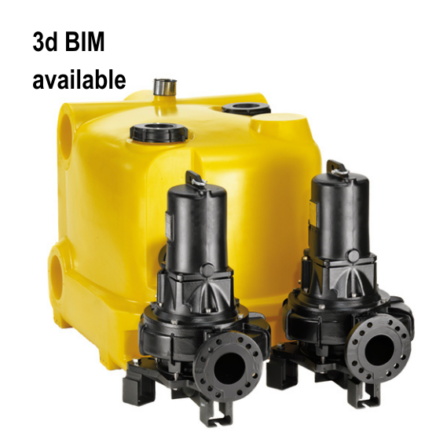

Use our 3d Bim library to generate a pdf and image
We stock many Jung Pumpen spares at our warehouse in Aldermaston. Please download the Compli 500 spares list or call the office on 0118 9821 555 if you need help, or to place an order.
| Type | Code No. | |
|---|---|---|
| Level control | JP50467 | |
| Seal level control |
JP50479 | |
| Adapter | JP50478 |
|
| Control unit | JP50491 | AD 00R (Compli 510/4) |
| Control unit | JP50492 | AD 25R (510/4, 515/4) |
| Control unit | JP50493 | AD 46R (525/2, 525/4) |
| Control unit | JP50494 | AD 610R (535/2) |
| Elastic connector | JP43705 | |
| Flange | JP43706 | |
| Control board | JP50491 | |
| Control board | JP50498 | PCBA AD 25 (510/4, 515/4) |
| Control board | JP50499 | PCBA AD 46(525/2, 525/4) |
| Control board | JP50500 | PCBA AD 610 (535/2) |
| Pump | JP50469 | …10/4 |
| Pump | JP48824 | …15/4 |
| Pump | JP48825 | …25/4 |
| Pump | JP48826 | …25/2 |
| Pump | JP48827 | …35/2 |
| Pump | JP50162 | …10/4, 15M |
| Pump | JP50163 | …15/4, 15M |
| Pump | JP50164 | …25/4,15M |
| Reflux valve | JP43707 | |
| Reducer DN 150/DN 100 |
JP48871 | |
| Base plate | JP43711 | |
| Clamping flange | JP43713 | |
| Sealing tape | JP47966 | |
| Pump ventilation | JP43710 | |
| Service lid | JP42798 | |
| Plug-in connection D50xD59 |
JP45099 | |
| Collar | JP47287 | |
| Anti floating | JP43709 | |
| Tank | JP44860 |
Please download the Compli 500 spares list
