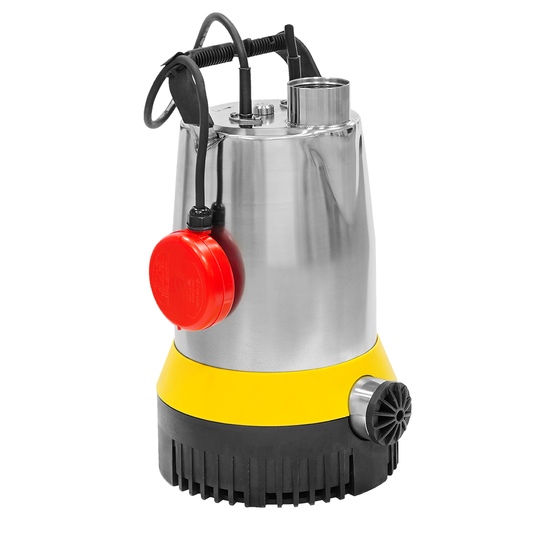

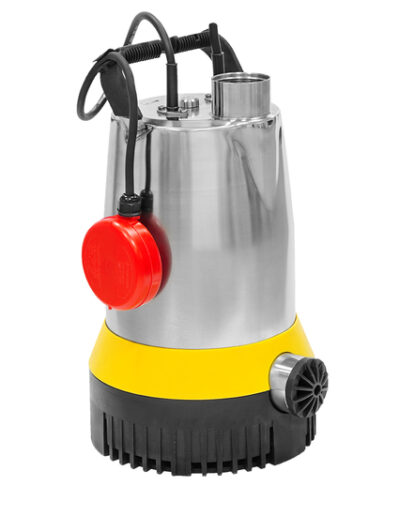

The UV 600-series is internally known as “the high head pumps” because the most important differentiator to our other drainage pumps is the high delivery head (H max up to 25.5m). They will usually be used where the pump performance of our other drainage pumps is insufficient.
Besides the outstanding pump performance the pumps have a number of great features which are summarized in the attached pdf-file.

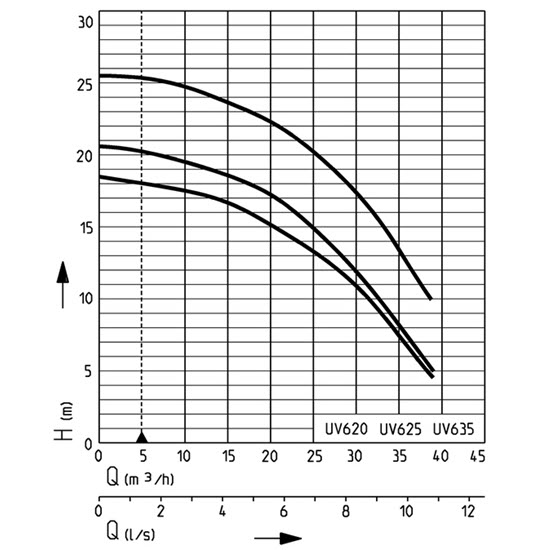

All in all, the UV 600 series contains 8 different models (with or without float switch) covering three different performance curves. All models have a three-phase motor, the smallest model (UV 620-1) is also available as a single-phase version.
| Type | Code No. | Ciruit | Voltage | Motor rating P1 | Motor rating P2 | Current | Motor protection | Plug |
|---|---|---|---|---|---|---|---|---|
|
UV 620-1
|
JP47337
|
Without level control
|
1/N/PE~230 V
|
2.4 kW
|
1.65 kW
|
10.4 A
|
Integrated
|
Without
|
|
UV 620-3
|
JP47339
|
Without level control
|
3/PE~400 V
|
2.38 kW
|
1.95 kW
|
4.6 A
|
on request
|
Without
|
|
UV 625-3
|
JP47341
|
Without level control
|
3/PE~400 V
|
2.8 kW
|
2.28 kW
|
5.2 A
|
on request
|
Without
|
|
UV 635-3
|
JP47343
|
Without level control
|
3/PE~400 V
|
3.7 kW
|
3.05 kW
|
6.2 A
|
on request
|
Without
|
|
UV 620-1 S
|
JP47338
|
With built-in level control
|
1/N/PE~230 V
|
2.4 kW
|
1.65 kW
|
10.4 A
|
Integrated
|
Safety
|
|
UV 620-3 S
|
JP47340
|
With built-in level control
|
3/PE~400 V
|
2.38 kW
|
1.95 kW
|
4.6 A
|
on request
|
Without
|
|
UV 625-3 S
|
JP47342
|
With built-in level control
|
3/PE~400 V
|
2.8 kW
|
2.28 kW
|
5.2 A
|
on request
|
Without
|
|
UV 635-3 S
|
JP47344
|
With built-in level control
|
3/PE~400 V
|
3.7 kW
|
3.05 kW
|
6.2 A
|
on request
|
Without
|
MultiDrain UV600 Data sheet
MultiDrain UV600 Manual
MultiDrain UV600 Spares list
MultiDrain UV600 Brochure
Please allow a short time for the 3D image to load. You can then click on the image to rotate it.
We stock many Jung Pumpen spares at our warehouse in Aldermaston. Please download the Jung MultiDrain UV600 spares list or call the office on 0118 9821 555 if you need help, or to place an order.
| Type | Code No. | |
|---|---|---|
| Blind Flange | JP48921 | |
| KT-switch | JP48881 | |
| Plug | JP48887 | |
| Screw set | JP48899 | |
| Bearing set | JP48893 | |
| Cover | JP48900 | |
| Plug | JP48882 | |
| Double jacket | JP48885 | UV 620-625 |
| Double jacket | JP48886 | UV 635 |
| Plug | JP48891 | 1 hole |
| Plug | JP48892 | 2 hole |
| Seal set | JP48898 | |
| Rotor shaft | JP48894 | UV 620-625 |
| Rotor shaft | JP48895 | UV 635 |
| Stator + Housing | JP48890 | 620-1 |
| Stator + Housing | JP48888 | 620-3, 625-3 |
| Stator + Housing | JP48889 | 635-3 |
| Cable | JP48883 | 230 V, 620-1 |
| Cable | JP48884 | 400 V, 6xx-3 |
| Bearing flange | JP48901 | |
| Mech. seal set | JP48902 | |
| Seal cover | JP48903 | |
| Oil screw | JP48904 | |
| Impeller | JP48905 | UV 620 |
| Impeller | JP48906 | UV 625 |
| Impeller | JP48907 | UV 635 |
| Volute casing cover | JP48908 | |
| Capacitor | JP48879 | |
| PCB | JP48897 | UV 620-1 |
| PCB | JP50263 | UV 620-1S |
| PCB | JP48896 | UV 6xx-3 |
| Strainer base | JP48914 | |
| Contactor | JP48880 | |
| Motor protection plug 230V | JP50290 |
Please download the Jung MultiDrain UV600 spares list
