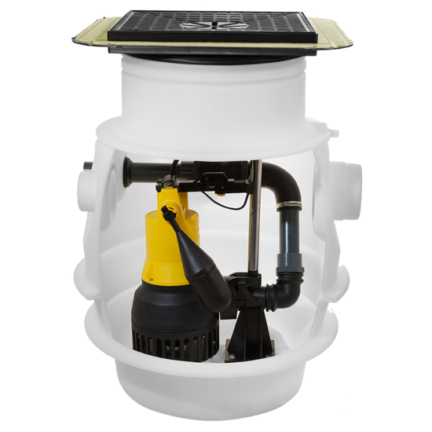

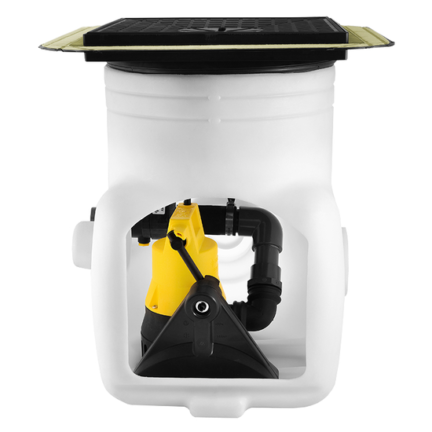

Baufix 200

Underground or floor mounted tank

Baufix 200 is for bigger domestic wastewater volume and larger storage capacity. Without requiring a great deal of construction work, it disposes of domestic wastewater from laundries, storage or cellar areas.

Baufix 200 can be installed as a single as well as duplex system. The required components for the installation of the pump are part of the scope of supply. The duplex system provides bigger security in the disposal in wastewater. In normal operation the two pumps operate alternately or at the same time to cope with peak load.

Technical Datasheet
Category:

Description

Key Information

  • Pressure stabilizer sump
  • Single- or duplex system
  • Floor drain with odour trap
  • Level-compensating frame
  • Seal collar for attaching to the customer’s thin-bed waterproofing system
  • Use in groundwater areas possible
  • Guide rail system GR 32 or GR 50 possible

To use with

  • U3K up to U6K
  • US 62 up to US 103
  • US 73 Ex and US 103 Ex
  • US 75 up to US 155

Models

Type Code No.
Baufix 200-32
JP48186
Baufix 200-50
JP48187

3D Image

Please allow a short time for the 3D image to load. You can then click on the image to rotate it.

Spares

We stock many Jung Pumpen spares at our warehouse in Aldermaston. Please call the office on 0118 9821 555 if you need help, or to place an order.

Type Code No.
Sump JP48707 Baufix 200-32
Sump JP48708 Baufix 200-50
Cover JP48245
Baufix 200-32
Cover JP48836 Baufix 200-50
Frame JP48244 Baufix 200-32
Frame JP48835 Baufix 200-50
Profiled joint JP47394 Baufix 200-32
Profiled joint JP48837 Baufix 200-50
Pressure pipe JP48739
Baufix 200-32
Pressure pipe JP48717 Baufix 200-50
Rubber elbow JP48460 Baufix 200-32
Rubber elbow JP48461 Baufix 200-50
Reflux valve JP48716 Baufix 200-32
Reflux valve JP48718 Baufix 200-50
Connection DN32 JP48721 Baufix 200-32
Connection DN32 JP48722 Baufix 200-50

Please download the Baufix 200 spares list
