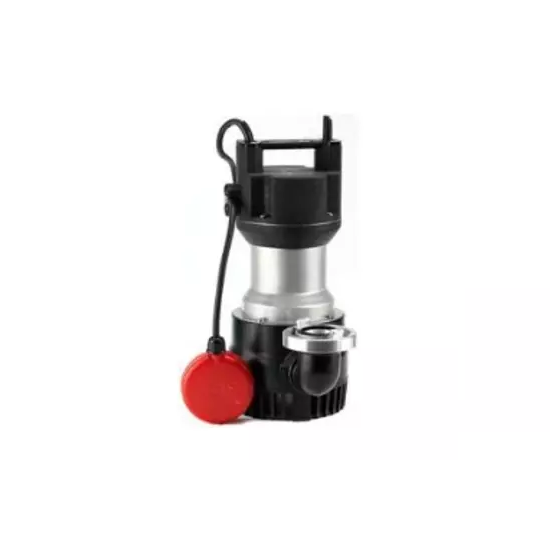

Jung UB 62-251 Waste Water Pump
The centrifugal submersible pumps of this range UB 62-251 can be used wherever rainwater, groundwater, leaked water, drainage or sewage water with impurities of up to 10 mm particle size occurs. The main applications are on building sites, like structural and civil engineering, sewage-construction and building mines.
They can also be used for taking water out of rivers and reservoirs as well as for filling and emptying containers. The standard fixed coupling makes a quick connection of the pressure tube possible.
This range of pumps is exclusively suitable for portable use. A controllable oil chamber and wear-resistant special mechanical seal ensure a long service life.
The pumps are delivered complete with lead and plug. The CEE plug of the three-phase pumps has an integrated phase inverter which facilitates their use on building sites.
It has adaptable discharge connection and is available with or without float switch.
Key Information
- Safe to run dry
- Portable
- Integrated fix-coupling
- 10 mm free passage
- Controllable oil chamber
- SiC mechanical seal independent of rotation direction
- Replaceable moisture sealed cable inlet
Technical Information
- 10mm free passage
- discharge branch
- C-Coupling
- Hmax = 16,5 m
- Qmax = 49 m3/h
