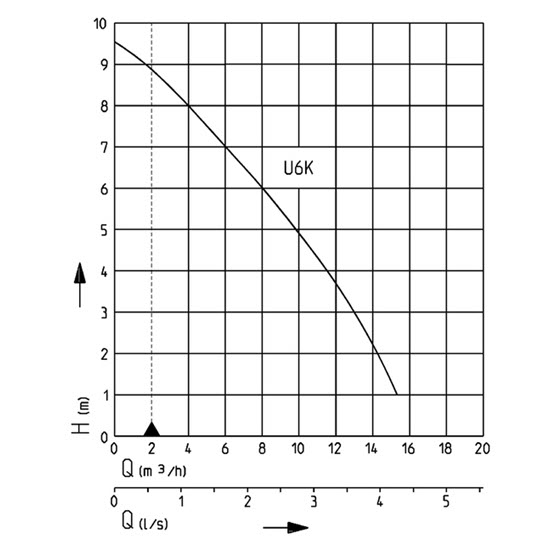

Jung U6K Niro Waste Water Pump Performance
Jung U6K Niro Waste Water Pump Performance

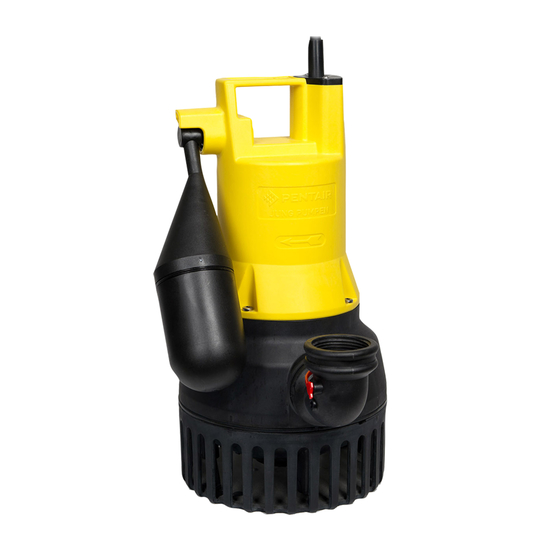

Jung U6K Niro Waste Water Pump
The Jung U6K Niro is the all purpose pump for waste water and ground water. The use of the guide rail system GR32 means that the U6 can easily be exchanged for the U3 or U5 pump.
It also pumps aggressive or abrasive liquids thanks to the use of SiC mechanical seals. The U6K Niro has an easily exchanged power cable inlet encapsulated in resin to provide maximum prevention against moisture entering motor. It provides free passage to 20 mm and ensures reliable pumping of heavily polluted waste water.
Rinsing openings in the hydraulic section ensure that the working area of the pump is kept clean. Can be supplied with or without automatic level control and with choice of 3 m or 10 m cable lengths.
Key Information
- The optimised level control guide mechanism avoids blockage due to solids
- Low level pumping by removing the strainer base
- Venting holes ensure reliable pumping in stationary applications
- Pumping with motor partially submerged possible due to the use of a cooling jacket
Technical Information
- 10mm Free solids handling
- 1.25 inch Discharge
- 9m Hmax
- 15m3/h Qmax
| Type | Code No. | Ciruit | Voltage | Motor rating P2 | Current | Power line | Plug |
|---|---|---|---|---|---|---|---|
|
U6K D, 10 m cable
|
JP00228
|
Without level control
|
3/PE~400 V
|
0.55 kW
|
1.3 A
|
10m H07RN-F
|
CEE
|
|
U6K DS, 4 m cable
|
JP00229
|
With built-in level control
|
3/PE~400 V
|
0.55 kW
|
1.3 A
|
4m H07RN-F
|
CEE
|
|
U6K DS, 10 m cable
|
JP09261
|
With built-in level control
|
3/PE~400 V
|
0.55 kW
|
1.3 A
|
10m H07RN-F
|
CEE
|
|
U6K E, 10 m cable
|
JP00226
|
Without level control
|
1/N/PE~230 V
|
0.5 kW
|
3.3 A
|
10m H07RN-F
|
Safety
|
|
U6K ES, 4 m cable
|
JP00227
|
With built-in level control
|
1/N/PE~230 V
|
0.5 kW
|
3.3 A
|
4m H07RN-F
|
Safety
|
|
U6K ES, 10 m cable
|
JP09260
|
With built-in level control
|
1/N/PE~230 V
|
0.5 kW
|
3.3 A
|
10m H07RN-F
|
Safety
|
Please allow a short time for the 3D image to load. You can then click on the image to rotate it.
We stock many Jung Pumpen spares at our warehouse in Aldermaston. Please call the office on 0118 467 9044 if you need help, or to place an order.
| Type | Code No. | |
|---|---|---|
| Motor contactor | JP46371 | |
| Microswitch | JP46351 | ES |
| Microswitch | JP46352 | DS |
| Cable | JP42776 |
E / ES, 4 m
|
| Cable | JP42777 | E / ES, 10 m |
| Cable | JP42778 | D / DS, 4 m |
| Cable | JP42779 | D / DS, 10 m |
| Cable | JP47221 | 10 m, A/NZ-plug |
| Shift shaft | JP42770 | |
| Float | JP42771 | |
| Capacitor | JP46374 | |
| Top cover | JP46919 | E |
| Top cover | JP46920 | D |
| Top cover | JP46372 | ES |
| Top cover | JP46373 | DS |
| Elbow | JP46355 | |
| Volute casing | JP46368 | |
| Seals | JP46370 | |
| Motor | JP46375 | E / ES |
| Motor | JP46376 | D / DS |
| Impeller | JP46369 | |
| Screw set | JP42773 | |
| Cover | JP42772 | |
| Seal set | JP46354 | |
| Strainer base | JP46367 |
Please download the U6K spares list
