Jung Multicut 20/2M Plus

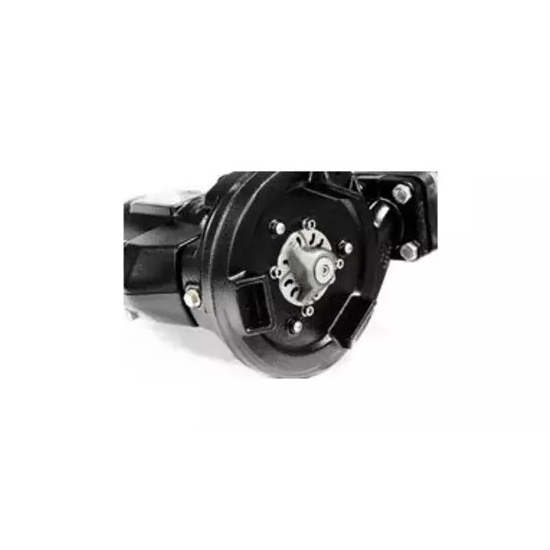

For more than a quarter century the MultiCut submersible sewage pump has been a success with its razor sharp cutting system.
Installed in more than 150,000 pumping stations, it pumps domestic waste water into the public sewer. The external and adjustable cutting system prevents uncuttable solids from entering into the pump interior. MultiCut pumps thus guarantee maximum operational reliability with excellent drainage characteristics.
The new Jung Multicut 20/2M Plus meets the requirements of today’s market. Resource-conserving materials such as plastic instead of grey cast iron for the impeller and the wear plate, less energy consumption and a lower weight help to offer a variety of advantages.
Key Information
- Suitable for traffic to cl. B 125
- Corrosion-resistant components
- Inlet designed for optimised flow and smooth benched deposit free collection chamber
- Coupling unit incl. guide rail system
- Valve unit and pump with pressure pipe can be lifted out of the sump together
- Residual volume from 35 litres
Technical Information
- 10% less energy consumption than MultiCut 25/2 M
- 20% less weight than MultiCut 25/2 M
- Impeller and replaceable wear plate made from Grivory(fibreglass reinforced plastic)
- Improved wear characteristics during cavitation

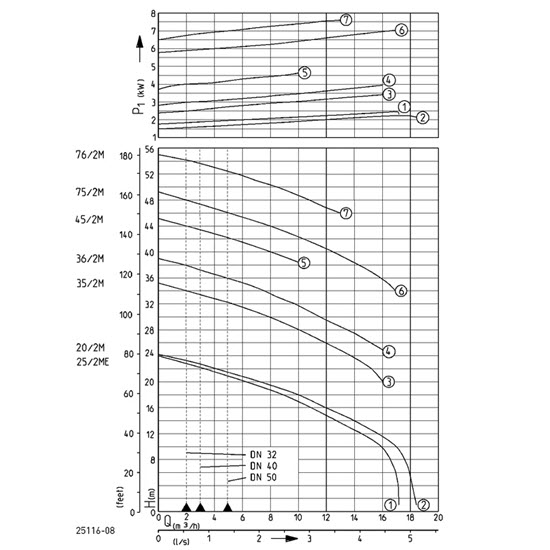

- Performance curve identical with MultiCut 25/2 M
- 1:1 interchangeable with MultiCut 25/2 M
Models
| Type | Code No. | Voltage | Motor rating P1 | Motor rating P2 | Current | Fuse | S3 | Ex-proof |
|---|---|---|---|---|---|---|---|---|
|
MultiCut 20/2 M plus
|
JP50350
|
3/PE~400 V
|
2.4 kW
|
1.91 kW
|
4 A
|
10 A
|
25 %
|
Without ex-proof
|
We stock many Jung Pumpen spares at our warehouse in Aldermaston. Please download the Multicut spares list or call the office on 0118 467 8020 if you need help, or to place an order.
| Type | Code No. | Type | Code No. |
|---|---|---|---|
| Cable 10m | JP46259 | 10x O-Ring 38×3,5 | JP48109 |
| Cable Ex, 10m | JP45469 | 10x Splint / Cotter pins 1,6×20 | JP46182 |
| Cable Ex, 15m | JP45583 | 10x Scheibe / Shim ring 12x16x0,2 | JP48114 |
| Cable Ex, 20m | JP45584 | 10x Scheibe / Shim ring 12x30x0,1 | JP48082 |
| Shackle | JP45904 | 10x Scheibe / Shim ring 12x30x0,2 | JP48083 |
| Stator + Housing 08/2 | JP43737 | 10x Scheibe / Shim ring 12x30x0,3 | JP48084 |
| Stator + Housing 20/2 | JP43738 | 10x O-Ring 21×2 | JP50323 |
| Connector | JP46572 | 10x O-Ring 10×2,5 | JP48088 |
| Bearing set | JP45585 | ||
| Rotor shaft 08/2 | JP46561 | ||
| Rotor shaft 20/2 | JP46562 | ||
| Mechanical seal | JP46043 | ||
| Seal set | JP45628 | ||
| Bearing housing | JP43739 | ||
| Cutter plate | JP50324 | ||
| Impeller 08/2 | JP45467 | ||
| Impeller 20/2 | JP45468 | ||
| Shim rings | JP46559 | ||
| Pump casing with wear plate |
JP45471 | ||
| Cutter | JP50326 | ||
| Wear plate | JP45657 | ||
| Pulling device for cutting system |
JP50325 | ||
| Oil screw | JP46046 | ||
| Screw set | JP46563 | ||
| 1l Oil | JP48236 |
Please download the Multicut spares list
