Baufix 100
Baufix 100 Underground Tank
The Baufix 100 underfloor sump system offers an efficient solution for the removal of effluent from laundries, storage, or cellar areas situated below the backpressure level, requiring minimal construction efforts. It is prohibited to use this system as a collection tank for fecal matter.
The system’s pressure-resistant plastic container is designed for direct integration into the concrete bed without the need for formwork, serving as a collection tank for underfloor pipework. Installation in areas prone to groundwater flooding is conditional upon the implementation of additional protective measures, such as a water-tight concrete shell. This stipulation is due to the PE to concrete connection’s inability to withstand hydrostatic pressure.
Baufix 100 Key Information
- For Waste Water (not sewage)
- Single Pump System Only
- Tank Capacity 70 Ltr
- Access Cover Supplied as Standard
- Access Cover supplied with floor drain if required
- Complete system ready to install

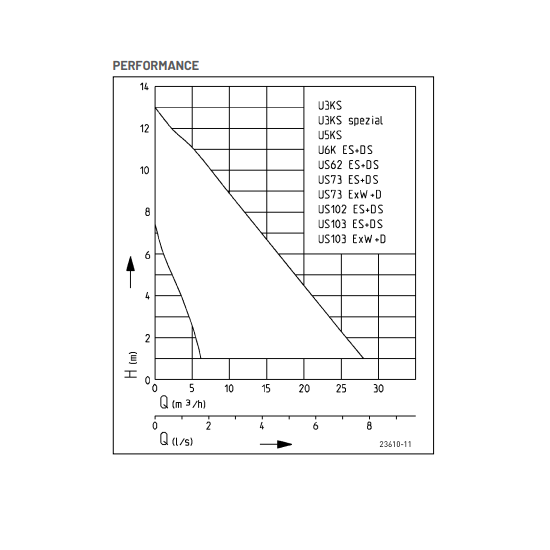

Suitable Pumps
- U3K up to U6K
- US62
- US73
- US102 – US103
Models
| Type | Code No. |
|---|---|
|
Baufix 100-tank
|
JP47214
|
Please allow a short time for the 3D image to load. You can then click on the image to rotate it.
We stock many Jung Pumpen spares at our warehouse in Aldermaston. Please download the Baufix 100 spares list or call the office on 0118 9821 555 if you need help, or to place an order.
| Type | Code No. | |
|---|---|---|
| Cover | JP48245 | |
| Frame | JP48244 | |
| Profiled joint | JP47394 |
|
| Connecting kit | JP47960 | |
| Sump | JP47961 |
Please download the Baufix 100 spares list
