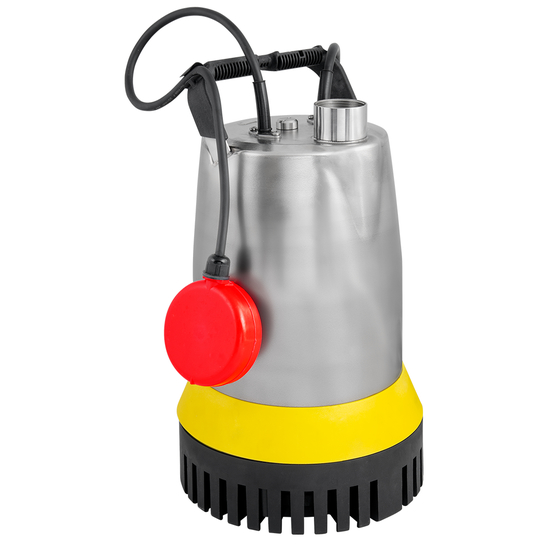

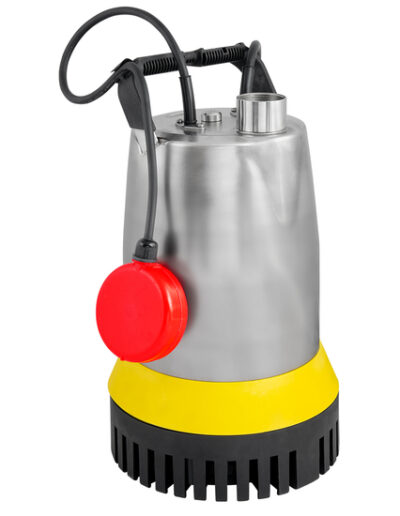

Jung MultiDrain UV300
The submersible drainage pumps Multidrain UV 300 can be used wherever there is dirty, rain, ground, seepage or drainage water with solids up to 10 mm.
They can therefor be used both in fixed installations in building drainage systems and in all transportable applications such as water extraction, emptying ponds or basins or, above all, in the removal of flooding inside and outside buildings.
The motor jacket cooling makes the pumps particularly suitable for submerged operation. A special thermal protection ensures that the pumps are not damaged even when running dry.
The MultiDrain UV300 can be supplied either with or without a mounted submersible ball contact switch and 10 m cable.
| Type | Code No. | Ciruit | Voltage | Motor rating P1 | Motor rating P2 | Current | Plug |
|---|---|---|---|---|---|---|---|
|
UV 305-1
|
JP48691
|
Without level control
|
1/N/PE~230 V
|
1.15 kW
|
0.88 kW
|
5.3 A
|
Safety
|
|
UV 305-3
|
JP48692
|
Without level control
|
3/PE~400 V
|
1.15 kW
|
0.84 kW
|
2.6 A
|
Without
|
|
UV 310-1
|
JP48695
|
Without level control
|
1/N/PE~230 V
|
1.3 kW
|
1 kW
|
5.8 A
|
Safety
|
|
UV 310-3
|
JP48696
|
Without level control
|
3/PE~400 V
|
1.35 kW
|
1.08 kW
|
3 A
|
Without
|
|
UV 315-1
|
JP48699
|
Without level control
|
1/N/PE~230 V
|
1.83 kW
|
1.36 kW
|
8.2 A
|
Safety
|
|
UV 315-3
|
JP48700
|
Without level control
|
3/PE~400 V
|
1.85 kW
|
1.45 kW
|
3.6 A
|
Without
|
|
UV 305-1 S
|
JP48693
|
With built-in level control
|
1/N/PE~230 V
|
1.15 kW
|
0.88 kW
|
5.3 A
|
Safety
|
|
UV 305-3 S
|
JP48694
|
With built-in level control
|
3/PE~400 V
|
1.15 kW
|
0.84 kW
|
2.6 A
|
CEE
|
|
UV 310-1 S
|
JP48697
|
With built-in level control
|
1/N/PE~230 V
|
1.3 kW
|
1 kW
|
5.8 A
|
Safety
|
|
UV 310-3 S
|
JP48698
|
With built-in level control
|
3/PE~400 V
|
1.35 kW
|
1.08 kW
|
3 A
|
CEE
|
|
UV 315-1 S
|
JP48701
|
With built-in level control
|
1/N/PE~230 V
|
1.83 kW
|
1.36 kW
|
8.2 A
|
Safety
|
|
UV 315-3 S
|
JP48702
|
With built-in level control
|
3/PE~400 V
|
1.85 kW
|
1.45 kW
|
3.6 A
|
CEE
|
Please allow a short time for the 3D image to load. You can then click on the image to rotate it.
We stock many Jung Pumpen spares at our warehouse in Aldermaston. Please call the office on 0118 467 9044 if you need help, or to place an order.
| Type | Code No. | |
|---|---|---|
| Blind Flange | JP48921 | |
| KT-switch | JP48881 | |
| Plug UV300 | JP48882 | |
| Screw set | JP49249 | |
| Bearing set | JP48893 | |
| Cover | JP49252 | |
| Double jacket | JP49253 | |
| Plug | JP48891 | 1 hole |
| Plug | JP48892 | 2 hole |
| Seal set | JP48898 | |
| Rotor shaft | JP49250 | UV 305 |
| Rotor shaft | JP49251 | UV 310, 315 |
| Stator + Housing | JP49254 | UV 305-1 |
| Stator + Housing | JP49255 | UV 310-1, UV 315-1 |
| Stator + Housing | JP49256 | UV 305-3 |
| Stator + Housing | JP49257 | UV 310-3, UV 315-3 |
| Cable | JP49258 | 230 V, UV 3xx-1, |
| Cable | JP48884 | 400 V, UV 3xx-3 |
| Cable | JP49259 | 400 V, UV 3xx-3S |
| Contactor | JP48880 | |
| Capacitor | JP49266 | UV 305 |
| Capacitor | JP49267 | UV 310, UV 315 |
| PCB | JP50264 | UV 305-1 |
| PCB | JP50265 | UV 310-1, UV 315-1 |
| PCB | JP48896 | UV 3xx-3 |
| Bearing flange | JP49260 | |
| Mech. seal set | JP48902 | |
| Seal cover | JP48903 | |
| Oil screw | JP48904 | |
| Impeller | JP49261 | UV 305 |
| Impeller | JP49262 | UV 310 |
| Impeller | JP49263 | UV 315 |
| Strainer base | JP49264 | |
| Sieb UV 300 | JP49265 |
Please download the Jung MultiDrain UV300 spares list
