Jung Compli MC Sewage Pumping Station
Jung Compli MC Floor Mounted Sewage Pumping Station: The sewage lifting stations compli 100, compli 500 and compli 1000 with MultiCut cutting system are used especially for disposal in special objects, such as weekend cottages, houseboats, toilets in production halls or mobile sanitary facilities.
Key Information
- Ideal in Commercial Situations
- Available as single or twin pump
- Control Panel and high level alarm pre wired
- Complete system ready to install
- Maintenance can be carried out very easily
- Multicut cutting system
Technical Information
- 38 or 115 Ltr. Capacity Tank – Ideal for busy commercial situations
- Floor to centre inlet 180-250mm

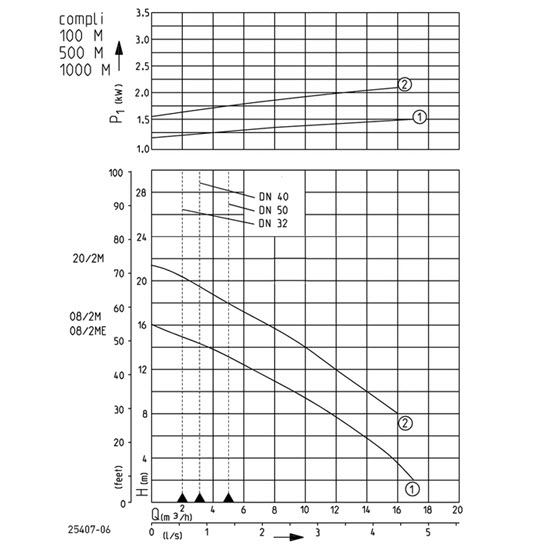

- Hmax = 22 m
- Qmax = 18 m3/h
The Compli with Multicut Cutting System – Your Ultimate Solution!
The Jung Compli MC with Multicut Grinder Pumps is meticulously crafted to excel in scenarios where efficient wastewater pumping is a must. Specifically designed for long-distance transport through narrow, small-diameter pressure pipes to the next sewer or when dealing with substantial delivery heads (such as multiple floors), this cutting-edge pump is ready to tackle the challenge.
Key Features:
- Superior Design: The Compli with Multicut boasts a cutting system that ensures smooth and reliable operation even in demanding environments.
- Versatility: Available in both single and duplex units, providing flexibility to meet your specific pumping requirements.

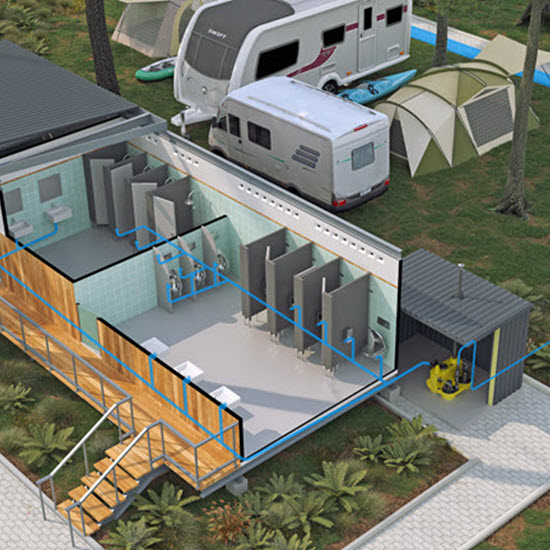

- Diverse Applications: The Compli with Multicut cutting system finds its ideal application in a variety of settings, including:
- Campsites: Efficiently manage wastewater in remote camping areas.
- Toilet Cars/Trailers: Perfect for handling waste in mobile restroom facilities.
- Smaller Buildings: Suited for pumping tasks in compact structures.
- Shops: An ideal choice for maintaining a clean environment in commercial settings.
Trust the Compli with Multicut Grinder Pumps to deliver outstanding performance, reliability, and efficiency in all your wastewater pumping needs. With its advanced features and wide range of applications, it’s the ultimate solution for hassle-free pumping.
Models
| Type | Code No. | Voltage | Motor rating P1 | Motor rating P2 | Current | Plug | Pressure pipe | Pressure outlet | Tank capacity |
|---|---|---|---|---|---|---|---|---|---|
|
Compli 108/2 ME
|
JP50088
|
1/N/PE~230 V
|
1.7 kW
|
1.14 kW
|
7.5 A
|
Safety
|
DN 32
|
DN 32
|
38 l
|
|
Compli 108/2 M
|
JP50089
|
3/N/PE~400 V
|
1.65 kW
|
1.24 kW
|
2.8 A
|
CEE
|
DN 32
|
DN 32
|
38 l
|
|
Compli 120/2 M
|
JP50090
|
3/N/PE~400 V
|
2.3 kW
|
1.85 kW
|
3.9 A
|
CEE
|
DN 32
|
DN 32
|
38 l
|
|
Compli 508/2 ME
|
JP50096
|
1/N/PE~230 V
|
1.7 kW
|
1.14 kW
|
7.5 A
|
Safety
|
DN 40
|
DN 40
|
117 l
|
|
Compli 508/2 M
|
JP50097
|
3/N/PE~400 V
|
1.65 kW
|
1.24 kW
|
2.8 A
|
CEE
|
DN 40
|
DN 40
|
117 l
|
|
Compli 520/2 M
|
JP50098
|
3/N/PE~400 V
|
2.3 kW
|
1.85 kW
|
3.9 A
|
CEE
|
DN 40
|
DN 40
|
117 l
|
|
Compli 1008/2 ME
|
JP50112
|
1/N/PE~230 V
|
1.7 kW
|
1.14 kW
|
7.5 A
|
Safety
|
DN 40
|
DN 40
|
117 l
|
|
Compli 1008/2 M
|
JP50114
|
3/N/PE~400 V
|
1.65 kW
|
1.24 kW
|
2.8 A
|
CEE
|
DN 40
|
DN 40
|
117 l
|
|
Compli 1020/2 M
|
JP50115
|
3/N/PE~400 V
|
2.3 kW
|
1.85 kW
|
3.9 A
|
CEE
|
DN 40
|
DN 40
|
117 l
|
